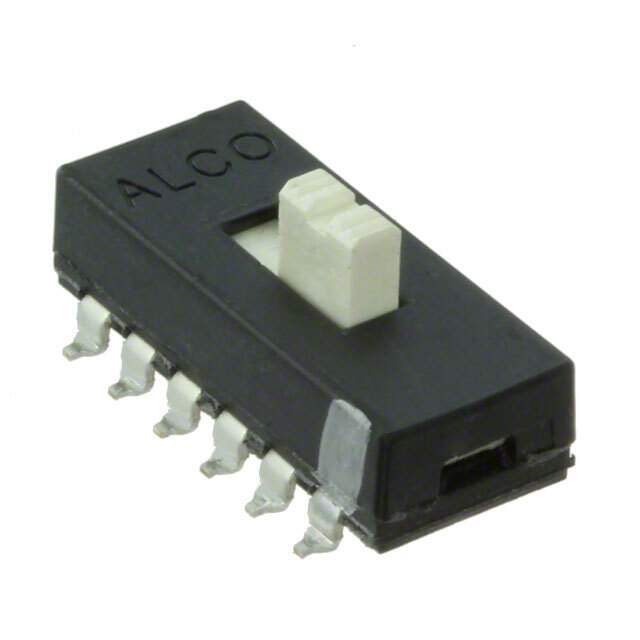

1-1825010-8 Real Image
Same model may have multiple batches, images only for reference.

1-1825010-8

Part No 1-1825010-8
Manufacturer TE Connectivity
Catalog Slide Switches
Description SWITCH SLIDE 4PDT 300MA 115V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity ALCOSWITCH Switches
Packaging Tube
Circuit 4PDT
Contact Timing Shorting (MBB)
Switch Function On-On
Current Rating (Amps) 300mA (AC)
Voltage Rating - AC 115V
Actuator Type Standard
Actuator Length 2.79mm
Contact Material Copper Alloy
Contact Finish Silver
Mounting Style SMD
Termination Style Gull Wing
Temperature Range - Operating -40°C ~ 80°C
Actuator Material Polyamide (PA46), Nylon 4/6
Switch Travel 2.79mm
Mechanical Life 15,000 Cycles
Electrical Life 15,000 Cycles
Operating Force 950gf
Manufacturer Pack Quantity 30
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 813602-1-1825010-8
Ultra Librarian 3D Model Ultra Librarian 1-1825010-8 CAD Model

Description

The 813602-1-1825010-8 is a 4PDT (On-On) switch designed by TE Connectivity ALCOSWITCH Switches. The switch is mounted using surface mount technology with a gull wing termination style.

  • Contact Material: Copper Alloy
  • Contact Finish: Silver
  • Actuator Material: Polyamide (PA46) and Nylon 4/6
  • Voltage Rating (AC): 115V
  • Circuit: Shorting (MBB)
  • Actuator Length: 2.79mm
  • Switch Travel: 2.79mm
  • Electrical and Mechanical Life: 15,000 cycles
  • Operating Force: 950gf
  • Operating Temperature Range: -40°C to 80°C
  • Popularity: Low
  • Supply and Demand Status: Limited
