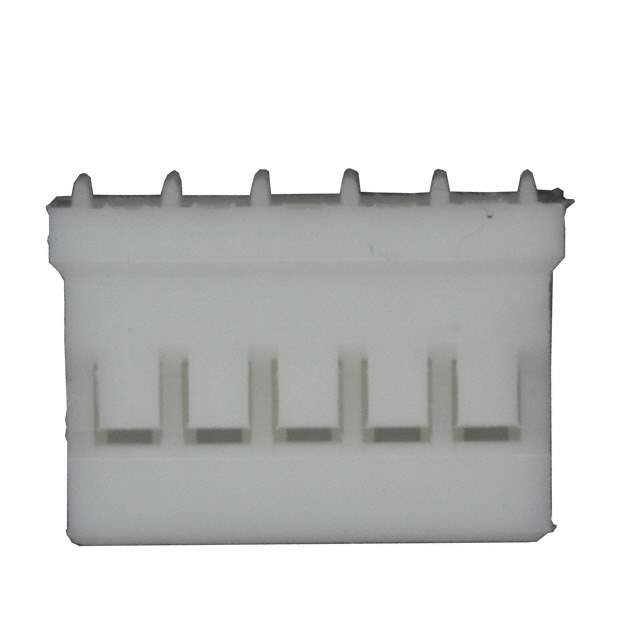

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr TE Connectivity AMP Connectors
Series High Performance Interconnect (HPI)
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 5
Pitch 0.059" (1.50mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Locking Ramp
Color Natural
Note Contacts Not Included
Base Product Number 1775441
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Other Names 17754415,A99971
Standard Package 1,000
Win Source Part Number 1032008-1775441-5
Ultra Librarian 3D Model Ultra Librarian 1775441-5 CAD Model

Description

The 1775441-5 is a high-performance interconnect (HPI) with 5 number of positions and a pitch of 0.059” (1.50mm).

  • Color: Natural
  • Connector Type: Receptacle
  • Contact Type: Female Socket
  • Rows: 1
  • Fastening Type: Locking Ramp
  • Package: Bulk
  • Contact Termination: Crimp
  • Contacts Included: No
  • Standard Package: 1000
  • Mounting Type: Free Hanging (In-Line)
  • Alternative Parts (Cross-Reference): 1775441-4, 440146-5, 440146-4, 51021-0500, 502380-0500, and 87439-0500
  • MSL Level: 1 (Unlimited)
  • REACH Status: Vendor Undefined
  • HTSUS: 8538.90.6000
  • Other Names: 17754415 and A99971
