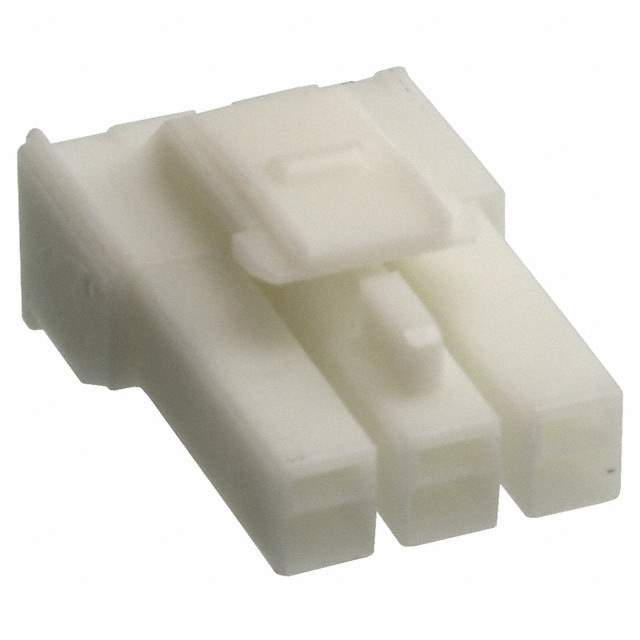

176272-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Housings
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Plug
Contact Type Female Socket
Number of Positions 3
Pitch 0.156" (3.96mm)
Number of Rows 1
Mounting Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color Natural
Note Contacts Not Included
Base Product Number 176272
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Other Part Number 176272-1-ND,A106282,1762721,-176272-1-SI
Standard Package 1,000
Win Source Part Number 1334321-176272-1
Ultra Librarian 3D Model Ultra Librarian 176272-1 CAD Model

Description

This rectangular connector housing from TE Connectivity AMP Connectors has 3 positions and a pitch of 0.156" (3.96mm).

  • Positions: 3
  • Pitch: 0.156" (3.96mm)
  • Connector Type: Plug
  • Contact Type: Female Socket
  • Fastening Type: Latch Lock
  • Contact Termination: Crimp
  • Contacts Included: No
  • Color: Natural
  • Standard Package: 1,000
  • RoHS Compliant: Yes
  • Applications: Industrial, Automotive, and Consumer Electronics
  • Operating Temperature Range: Not Specified
