Products specifications Report Issue?

Category Connectors, Interconnects - Barrel Connectors - Power Connectors
Mfr Switchcraft Inc.
Package Bulk
Product Status Active
Connector Type Plug
Gender Female
Industry Recognized Mating Diameter 2.50mm ID (0.098"), 5.50mm OD (0.217")
Actual Diameter 0.098" (2.50mm ID), 0.217" (5.50mm OD)
Number of Positions/Contacts 2 Conductors, 2 Contacts
Internal Switch(s) Does Not Contain Switch
Mounting Type Free Hanging (In-Line)
Termination Solder Eyelet(s)
Shielding Unshielded
Features Cable Clamp, Thread Lock
Insulation Color Black
Voltage - Rated 30VDC
Current Rating (Amps) 5 A
Ingress Protection IP68
Contact Material - Plating Tin
Body Material Copper Alloy
Includes 2 pcs - 1 Connector, 1 Handle
Housing Material Thermoplastic
Contact Material Copper Alloy
Body Color Silver, Black
Base Product Number 761K
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 908375-761KS17
Ultra Librarian 3D Model Ultra Librarian 761KS17 CAD Model

Description

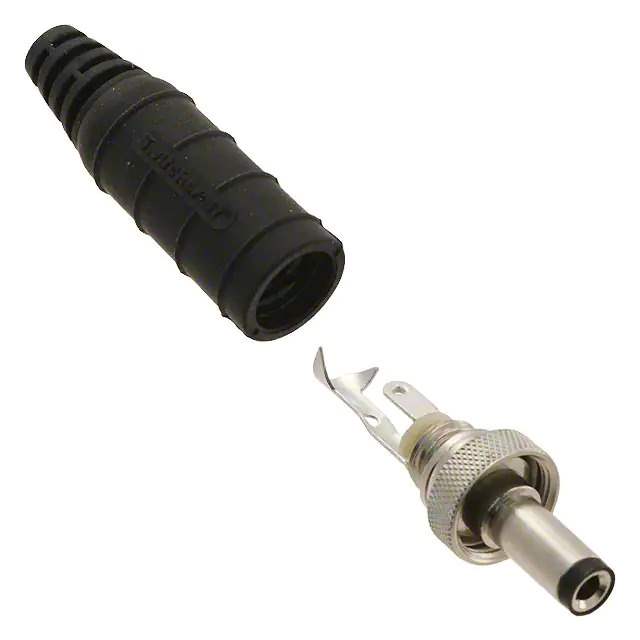

The 908375-761KS17 is a female power connector designed for various electronic applications.

  • Connector Type: Plug
  • Termination: Solder eyelet
  • Contact Material: Copper alloy
  • Contact Plating: Tin
  • IP Rating: IP68
  • Shielding: Unshielded
  • Housing Material: Thermoplastic
  • Voltage Rating: 30VDC
  • Current Rating: 5A
  • Mounting: Free hanging
  • Installation: In-line
  • Package: Bulk
  • Package Quantity: 100 pieces
  • ID: 2.50mm
  • OD: 5.50mm
  • Mating Diameter: Industry recognized
  • Color: Black, Silver and black body
  • Status: Active product
  • Manufacturer: Switchcraft Inc.
