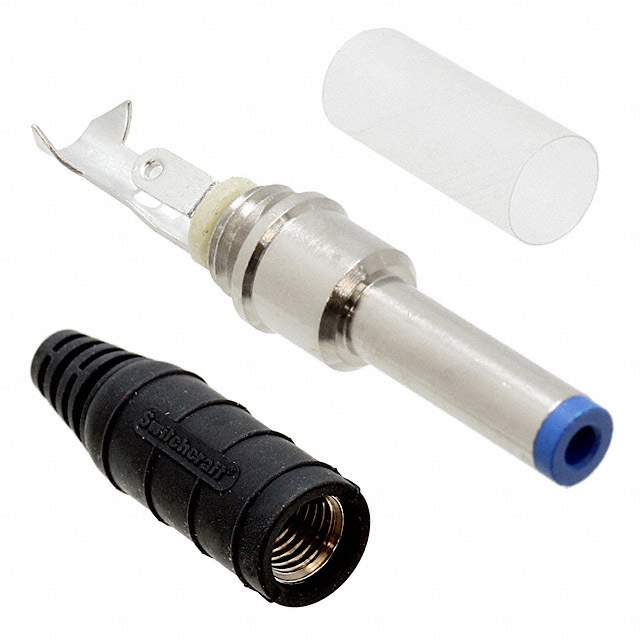

S1012 Real Image
Same model may have multiple batches, images only for reference.

S1012

Part No S1012
Manufacturer Switchcraft Inc.
Catalog Barrel - Power Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Barrel - Power Connectors
Mfr Switchcraft Inc.
Series S10
Package Bulk
Connector Type Plug
Gender Female
Industry Recognized Mating Diameter 2.00mm ID (0.079"), 5.50mm OD (0.217")
Number of Positions/Contacts 2 Conductors, 3 Contacts
Internal Switch(s) Does Not Contain Switch
Mounting Type Free Hanging (In-Line)
Termination Solder
Shielding Unshielded
Features Strain Relief
Insulation Color Blue
Voltage - Rated 24VDC
Current Rating (Amps) 11 A
Contact Material - Plating Tin
Body Material Copper Alloy
Temperature Range - Operating -40°C ~ 105°C
Includes 2 pcs - 1 Connector, 1 Handle
Housing Material Elastomer
Contact Material Copper Alloy
Body Color Silver, Black
Base Product Number S10
Other Names SC1945
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1294260-S1012
Ultra Librarian 3D Model Ultra Librarian S1012 CAD Model

Description

The S1012 from Switchcraft Inc. is a female connector with 2 conductors and 3 contacts.

  • Conductors: 2
  • Contacts: 3
  • Series: S10
  • Features: Strain relief properties
  • Connector Type: Plug
  • Termination: Solder
  • Package: Bulk
  • Contact Material: Copper Alloy
  • Contact Material Plating: Tin
  • Housing Material: Elastomer
  • Voltage Rating: 24VDC
  • Current Rating: 11 A
  • Industry Recognized Mating Diameter: 2.00mm ID (0.079"), 5.50mm OD (0.217")
  • Temperature Range for Operating: -40°C ~ 105°C
  • Package Includes: 2 pcs - 1 connector and 1 handle
