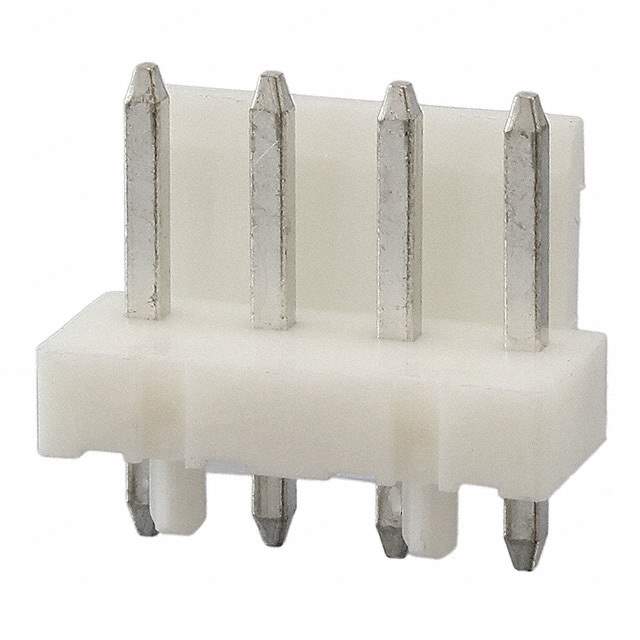

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Economy Power
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.303" (7.70mm)
Contact Length - Post 0.145" (3.68mm)
Overall Contact Length 0.575" (14.60mm)
Insulation Height 0.127" (3.22mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 120.0µin (3.05µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Features Board Guide
Temperature Range - Operating -25°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 7.5A
Voltage Rating 250VAC
Contact Finish Thickness - Post 120.0µin (3.05µm)
Applications General Purpose, Industrial, Lighting
Base Product Number 1744057
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names -1744057-4-SI,2266-1744057-4,A108541
Standard Package 1,000
Win Source Part Number 1005034-1744057-4
Ultra Librarian 3D Model Ultra Librarian 1744057-4 CAD Model

Description

The TE Connectivity AMP Connectors 1744057-4 is an economy power header connector that is widely used in various applications such as general purpose, industrial, and lighting.

  • Contact Type: Male Pin
  • Packaging: Bulk
  • Standard Package: 1,000
  • Fastening Type: Friction Lock
  • Pitch-Mating: 0.156" (3.96mm)
  • Current Rating: 7.5A
  • Contact Material: Brass
  • Voltage Rating: 250VAC
  • Insulation Material: Polyamide (PA66), Nylon 6/6
  • Termination: Solder
  • MSL Level: 1 (unlimited)
  • REACH Status: Vendor Undefined
