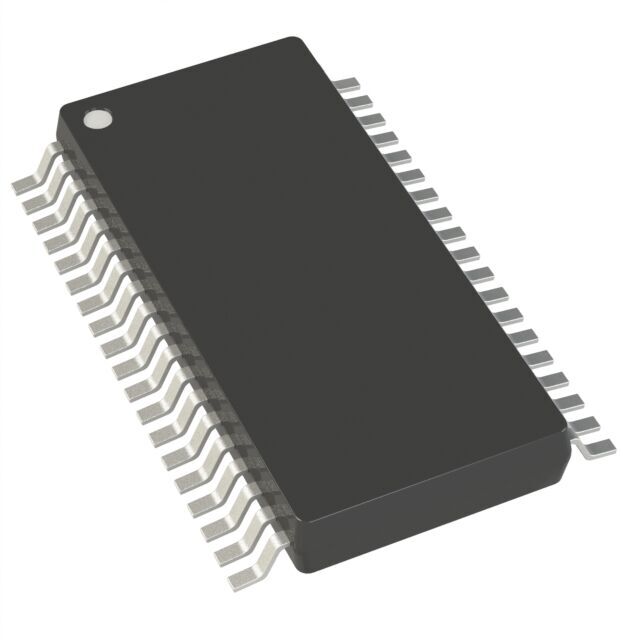

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category IsolatorsDigital Isolators
Mfr Texas Instruments
Part Status Active
Technology Capacitive Coupling
Type SPI
Isolated Power Yes
Number of Channels 8
Inputs - Side 1/Side 2 8/0
Channel Type Unidirectional
Voltage - Isolation 3000Vrms
Common Mode Transient Immunity (Min) 50kV/μs
Data Rate 1.5Mbps
Propagation Delay tpLH / tpHL (Max) 780ns, 900ns
Rise / Fall Time (Typ) 9ns, 9ns
Voltage - Supply 1.71V ~ 5.5V
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 38-FSOP (0.154", 3.90mm Width)
Supplier Device Package 38-SSOP
Ultra Librarian 3D Model Ultra Librarian ISO1228DFBR CAD Model
