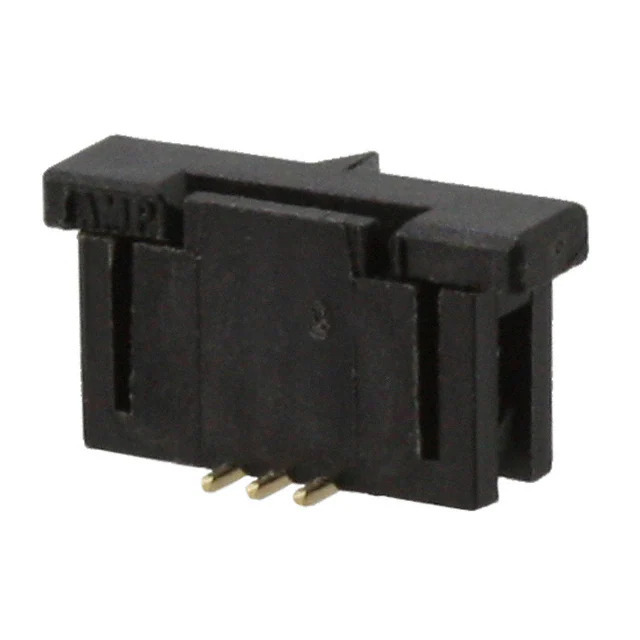

1734248-3 TE Connectivity
Same model may have multiple batches, images only for reference.

1734248-3

Part No 1734248-3
Manufacturer TE Connectivity
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC VERT 3POS 1MM SMD / 3 Position FPC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr TE Connectivity AMP Connectors
Series -
Package Tape & Reel
Product Status Active
Flat Flex Type FPC
Mounting Type Surface Mount
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 3
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.217" (5.50mm)
Locking Feature Slide Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Polyamide (PA9T), Nylon 9T
Actuator Material Polyamide (PA9T), Nylon 9T
Features Zero Insertion Force (ZIF)
Voltage Rating 125V
Temperature Range - Operating -20°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Contact Finish Thickness Flash
Housing Color Black
Actuator Color Black
Mating Cycles 20
Base Product Number 1734248
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362702-1734248-3
Ultra Librarian 3D Model Ultra Librarian 1734248-3 CAD Model

Description

The 1734248-3 is a FFC, FPC connector assembly manufactured by TE Connectivity AMP Connectors.

  • Packaging: Tape and Reel
  • Status: Active
  • Features: Zero Insertion Force (ZIF)
  • Positions: 3
  • Mounting Type: Surface Mount
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold
  • Housing Color: Black
  • Actuator Color: Black
  • Pitch: 0.039" (1.00mm)
  • Voltage Rating: 125V
  • RoHS Compliant: Yes
  • REACH Unaffected: Yes
