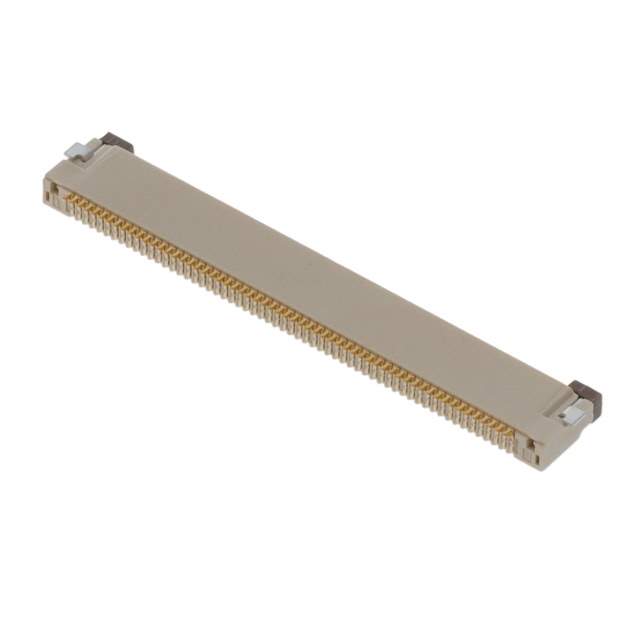

Same model may have multiple batches, images only for reference.

10085901-60115ELF

Name: 10085901-60115ELF
Brand: Amphenol
SKU: 1192999
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	10085901-60115ELF
Manufacturer	Amphenol
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC BOTTOM 60POS 0.50MM R/A / 60 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr	Amphenol ICC (FCI)
Series	VHC
Package	Tape & Reel (TR),Cut Tape (CT)
Flat Flex Type	FFC, FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	60
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm, 0.33mm
Height Above Board	0.079" (2.00mm)
Locking Feature	Slide Lock
Cable End Type	Straight, Tapered
Contact Material	Copper Alloy
Contact Finish	Gold
Housing Material	Thermoplastic
Actuator Material	Thermoplastic
Features	Zero Insertion Force (ZIF)
Voltage Rating	50V
Temperature Range - Operating	-55°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A
Contact Finish Thickness	Flash
Housing Color	Natural
Actuator Color	Black
Mating Cycles	20
Base Product Number	10085901
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4051
Other Names	10085901-60115ELF-ND,609-10085901-60115ELFTR,609-10085901-60115ELFCT
Standard Package	3,000
Win Source Part Number	1192999-10085901-60115ELF
Ultra Librarian 3D Model	Ultra Librarian 10085901-60115ELF CAD Model

Description

The VHC series FFC/FPC connector is a high-quality product that is designed for use in electronic devices that require a reliable and secure connection.

Positions: 60
Pitch: 0.020" (0.50mm)
Feature: Zero Insertion Force (ZIF)
Contact Finish: Gold
Contact Material: Copper Alloy
Contact Finish Thickness: Flash
Packaging: Tape & Reel (TR) and Cut Tape (CT)
Rating: UL94 V-0
Housing Color: Natural
Mounting: Surface Mount and Right-Angle
