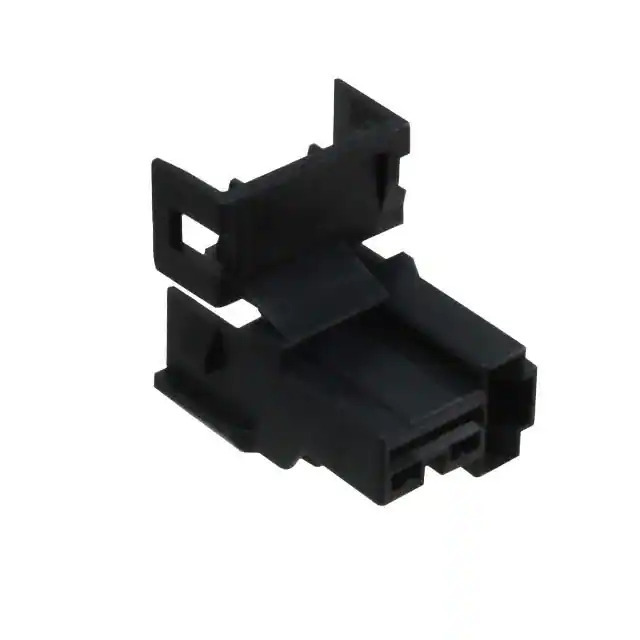

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Housings, Boots
Mfr TE Connectivity AMP Connectors
Series Mark II
Package Bulk
Product Status Active
Style Housing
Terminal Type Quick Connect, Disconnect
Gender Female, Receptacle
Terminal Size 0.250" (6.35mm)
Number of Positions 2
Stacking Direction Perpendicular
For Use With/Related Products 0.250" (6.35mm) Quick Connects
Mounting Type Free Hanging (In-Line)
Color Black
Material Nylon
Note Contacts Not Included
Base Product Number 172864
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1364013-172864-2
Ultra Librarian 3D Model Ultra Librarian 172864-2 CAD Model

Description

The TE Connectivity AMP Connectors 172864-2 is a terminal housing for quick connect and disconnect applications.

  • Series: Mark II
  • Application: Terminals and Housings
  • Package: Bulk
  • Material: Black-Colored Nylon
  • Connector Gender: Female Receptacle
  • Quick Connect Size: 0.250" (6.35mm)
  • Positions: 2
  • Contacts Included: No
  • Terminal Size: 0.250" (6.35mm)
  • Stacking Direction: Perpendicular
  • Status: Active
  • Current Rating: 30 pct
  • Manufacturer: TE Connectivity AMP Connectors
