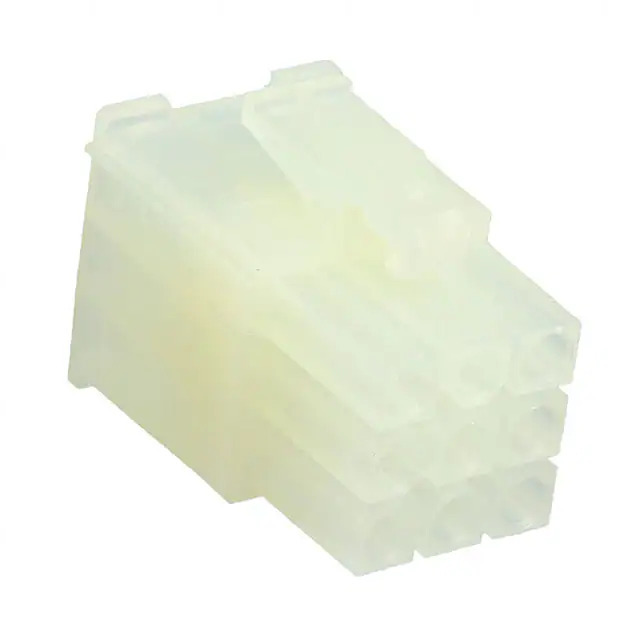

172340-1 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr TE Connectivity AMP Connectors
Series Mini-Universal MATE-N-LOK
Package Bulk
Product Status Active
Connector Type Plug
Contact Type Male or Female
Number of Positions 9
Pitch 0.163" (4.14mm)
Number of Rows 3
Row Spacing 0.163" (4.14mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color Natural
Features -
Temperature Range - Operating -20°C ~ 105°C
Note Contacts Not Included
Base Product Number 172340
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1365809-172340-1
Ultra Librarian 3D Model Ultra Librarian 172340-1 CAD Model

Description

The Mini-Universal MATE-N-LOK Plug is a versatile rectangular connector housing designed for a wide range of electronic applications from TE Connectivity AMP Connectors.

  • Series: Mini-Universal MATE-N-LOK
  • Mounting Type: Free-Hanging (In-Line)
  • Contact Termination: Crimp
  • Fastening Type: Latch Lock
  • Color: Natural
  • Contact Type: Male or Female
  • Positions: 9
  • Rows: 3
  • Pitch: 0.163" (4.14mm)
  • Row Spacing: 0.163" (4.14mm)
  • Temperature Range: -20°C to 105°C
