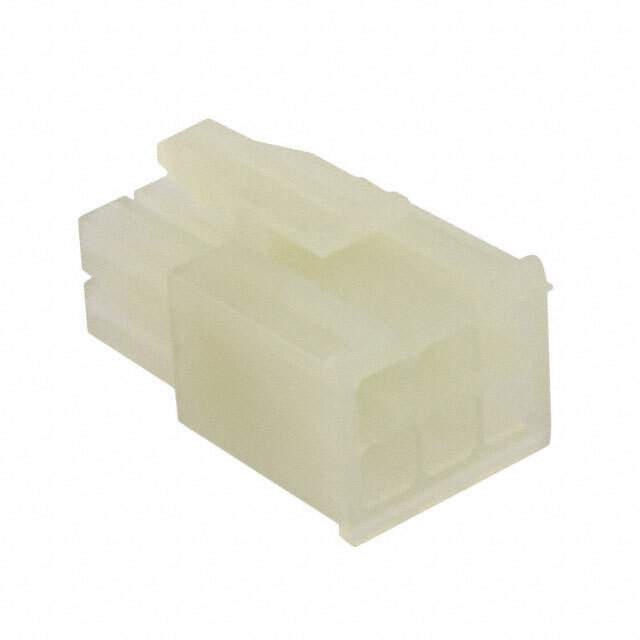

172339-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr TE Connectivity AMP Connectors
Series Mini-Universal MATE-N-LOK
Package Bulk
Connector Type Plug
Contact Type Male or Female
Number of Positions 6
Pitch 0.163" (4.14mm)
Number of Rows 2
Row Spacing 0.163" (4.14mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color Natural
Note Contacts Not Included
Base Product Number 172339
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Other Names 1723391,2266-172339-1,A97674
Standard Package 500
Win Source Part Number 1221723-172339-1
Ultra Librarian 3D Model Ultra Librarian 172339-1 CAD Model

Description

The TE Connectivity AMP Connectors 172339 is a Mini-Universal MATE-N-LOK housing plug with 6 positions and a pitch of 0.163 inches.

  • Connector Type: Housing Plug
  • Positions: 6
  • Pitch: 0.163 inches
  • Contact Gender: Male or Female (depends on contacts used)
  • Fastening Type: Latch Lock
  • Package: Bulk
  • Row Spacing: 0.163 inches
  • Manufacturer: TE Connectivity AMP Connectors
