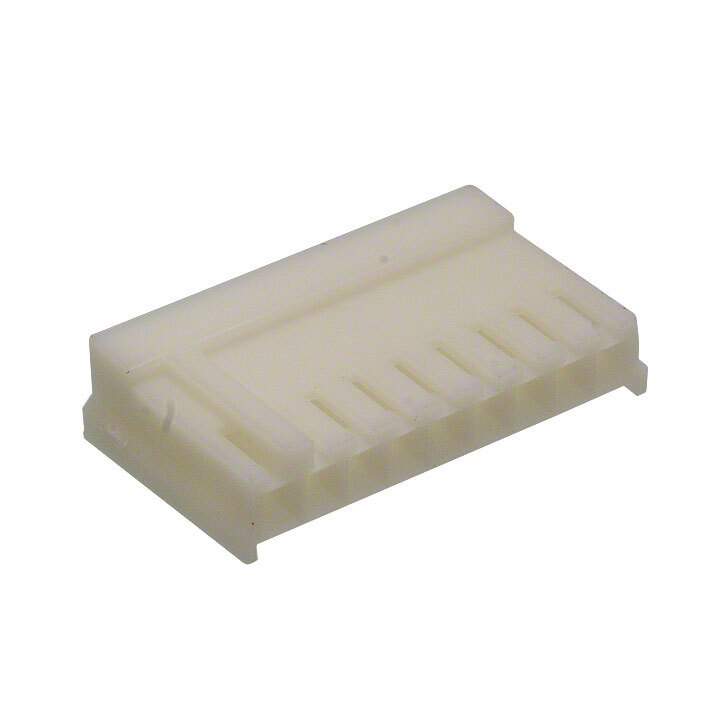

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr TE Connectivity AMP Connectors
Series EI
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 9
Pitch 0.098" (2.50mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Color Natural
Note Contacts Not Included
Base Product Number 171822
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.6000
Other Names 1718229,A105176,-171822-9-SI,171822-9-ND
Standard Package 1,000
Win Source Part Number 1012801-171822-9
Ultra Librarian 3D Model Ultra Librarian 171822-9 CAD Model

Description

The TE Connectivity AMP Connectors 171822-9-SI is a receptacle connector that is designed for female socket contact type.

  • Manufacturer: TE Connectivity AMP Connectors
  • Type: receptacle connector
  • Contact Type: female socket
  • Series: EI
  • Positions: 9
  • Pitch: 0.098 inches (2.50mm)
  • Color: natural
  • Packaging: bulk
  • Contact Termination: crimp
  • Mounting: free hanging (in-line)
  • MSL: level 1 (unlimited)
  • HTSUS Code: 8538.90.6000
