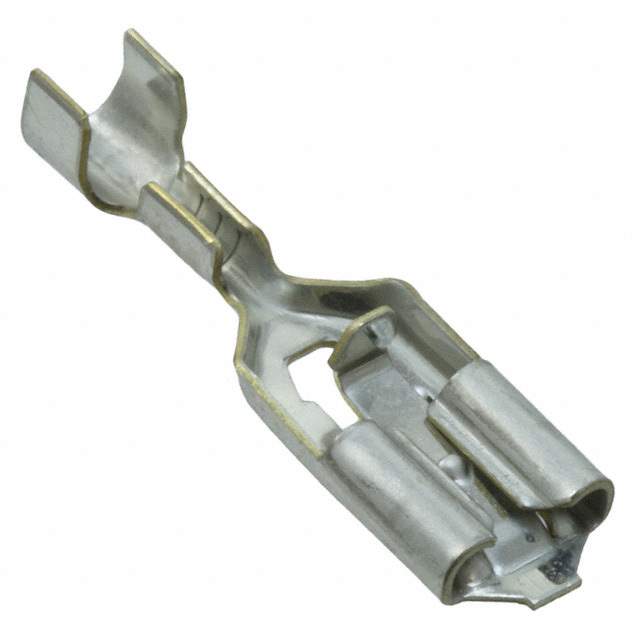

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Terminal Type Standard
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.020" (0.51mm)
Tab Length 0.236" (6.00mm)
Length - Overall 0.850" (21.59mm)
Termination Crimp
Wire Gauge 16-20 AWG
Insulation Non-Insulated
Mounting Free Hanging (In-Line)
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.075" ~ 0.134" (1.91mm ~ 3.40mm)
Base Product Number 170331
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 170331-1-ND,1703311,2266-170331-1,A106256
Standard Package 1,000
Win Source Part Number 1333651-170331-1
Ultra Librarian 3D Model Ultra Librarian 170331-1 CAD Model

Description

The TE Connectivity AMP Connectors 170331-1 is a female quick connect terminal with a crimp termination.

  • Wire Gauge: 16-20 AWG
  • Contact Material: Brass
  • Insulation: Non-Insulated
  • Packaging: Bulk
  • Standard Package: 1,000
  • Mounting Position: Free Hanging (In-Line)
  • Terminal Type: Standard
  • Overall Length: 0.850" (21.59mm)
  • Tab Width: 0.187" (4.75mm)
  • Tab Thickness: 0.020" (0.51mm)
  • Tab Length: 0.236" (6.00mm)
  • Insulation Diameter: 0.075" ~ 0.134" (1.91mm ~ 3.40mm)
  • MSL Level: 1 (Unlimited)
  • REACH Status: Vendor Undefined
  • HTSUS: 8536.90.4000
  • RoHS Compliant: Yes
