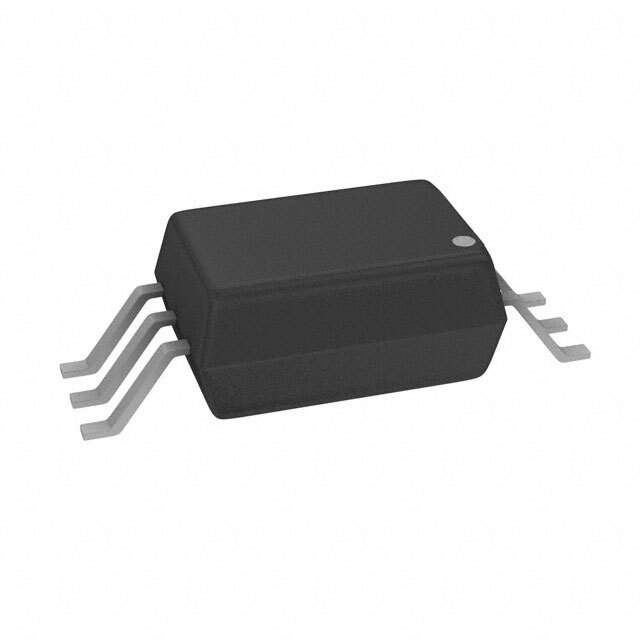

ON Semiconductor FOD8480 High-Speed MOSFET Gate Drive Optocoupler

The ON Semiconductor FOD8480 is a cutting-edge, high-speed MOSFET gate drive optocoupler designed to meet the demanding requirements of high-power switching applications. This optocoupler integrates a GaAlAs infrared LED and a high-gain photo detector that provides electrical insulation between the input and output. With its robust design, the FOD8480 ensures reliable operation and improved performance in a variety of power systems.

Key Features:

• High Current Output: The device is capable of driving high peak currents, up to 2.5A, making it suitable for directly driving MOSFETs and IGBTs.
• High Speed: With a propagation delay time of typically 500ns, the FOD8480 is optimized for high-speed switching, reducing transition losses and improving efficiency.
• Wide Operating Voltage Range: The optocoupler operates within a wide range of 15V to 30V, accommodating various gate drive voltages and ensuring flexibility in design.
• CMR (Common Mode Rejection): The high CMR of 35kV/μs at VCM = 1500V provides excellent noise immunity, essential for reliable operation in electrically noisy environments.
• Under Voltage Lock-Out (UVLO): The integrated UVLO feature ensures that the gate is not partially turned on when the supply voltage is too low, preventing damage to the MOSFET.
• Isolation Voltage: Offers a high isolation voltage of 5kVrms for 1 minute, providing safety and protecting the control circuits from high voltage transients.
• RoHS Compliant: The device is compliant with RoHS directives, making it environmentally friendly and suitable for use in green applications.

Applications:

The FOD8480 is ideal for a wide range of applications, including:

• Switch Mode Power Supplies (SMPS)
• Motor Drives
• Power Inverters/Converters
• Industrial Inverters
• Induction Heating
• Uninterruptible Power Supplies (UPS)

In summary, the ON Semiconductor FOD8480 optocoupler is an exceptional choice for designers looking for a reliable and efficient solution to drive their high-speed power MOSFETs and IGBTs. Its robust features ensure optimal performance in a variety of high-power applications.
