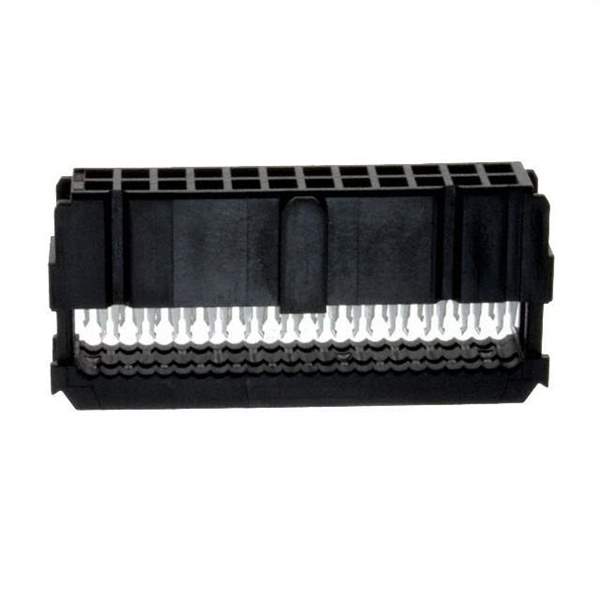

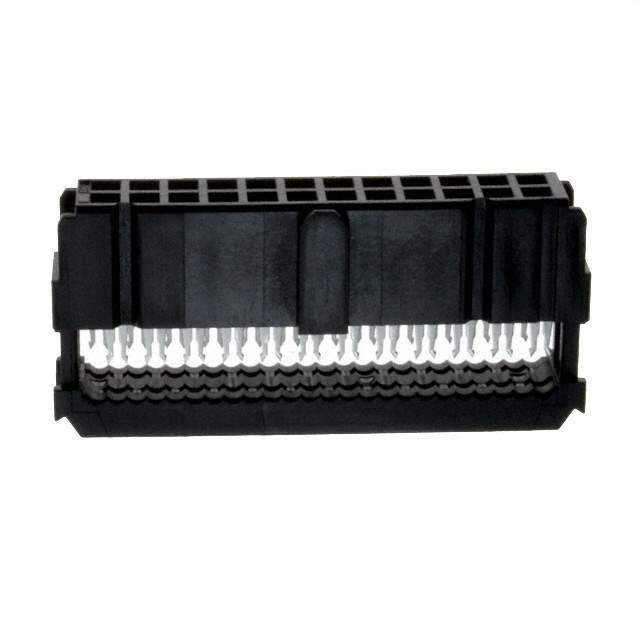

1658622-5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 14 Weeks
Features 24 Position Rectangular Receptacle Connector IDC Gold or Gold-Palladium 26-28 AWG
Manufacturer TE Connectivity
Series AMP-Latch
Package Bulk
Mounting Free Hanging (In-Line)
Family Name 1658622
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number 2266-1658622-5, -1658622-5-SI, AKN24B-ND, AKC24B, AKN24B, 16586225
Quantity per package 50
Popularity High
Supply and Demand Status Balance
Win Source Part Number 905429-1658622-5
Ultra Librarian 3D Model Ultra Librarian 1658622-5 CAD Model

Description

This electronic component is a connector manufactured by TE Connectivity.

  • Win Source Part Number: 905429-1658622-5
  • Series: AMP-Latch series
  • Connector Type: 24 position rectangular receptacle connector IDC gold or gold-palladium 26-28 AWG
  • Package: Packaged in bulk
  • Mounting: Mounted in-line
  • Popularity: High popularity in the market
  • Supply and Demand Status: Balanced
