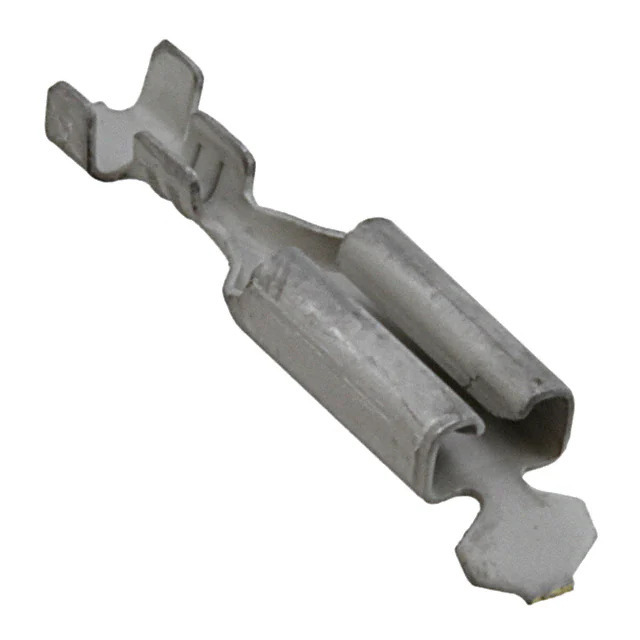

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Tape & Reel (TR)
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.110" (2.79mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.248" (6.30mm)
Length - Overall 0.550" (13.97mm)
Termination Crimp
Wire Gauge 22-26 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter -
Base Product Number 160772
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1365019-160772-3
Ultra Librarian 3D Model Ultra Librarian 160772-3 CAD Model

Description

The 1365019-160772-3 quick disconnect connector is from TE Connectivity AMP Connectors Faston series.

  • Terminal Gender: Female
  • Terminal Type: Standard
  • Tab Width: 0.110 inches (2.79mm)
  • Tab Thickness: 0.032 inches (0.81mm)
  • Overall Length: 0.550 inches (13.97mm)
  • Insulation: Non-insulated
  • Wire Gauge: 22-26 AWG
  • Contact Material: Brass
  • Contact Finish: Tin
  • Termination: Crimp
  • Mounting: Free-hanging (in-line)
