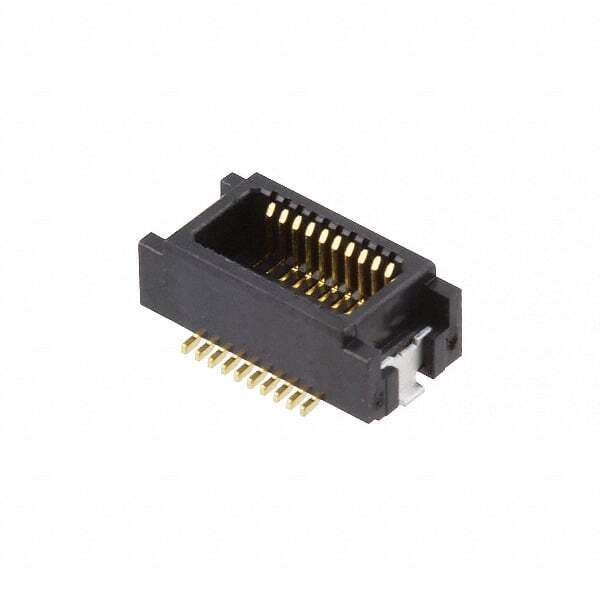

1565359-9
Same model may have multiple batches, images only for reference.

1565359-9

Part No 1565359-9
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN PLUG 20POS SMD GOLD
Datasheet
1565359-9 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr TE Connectivity
Series Fine Mate
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Obsolete
Connector Type Plug, Outer Shroud Contacts
Number of Positions 20
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 4mm, 4.5mm
Height Above Board 0.130" (3.30mm)
Base Product Number 1565359
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 847803-1565359-9
Ultra Librarian 3D Model Ultra Librarian 1565359-9 CAD Model

Description

The 847803-1565359-9 is a fine mate connector in the category of arrays, edge type, mezzanine (board to board) connectors and is manufactured by TE Connectivity.

  • Connector Type: Plug Connector with Outer Shroud Contacts
  • Pitch: 0.020" (0.50mm)
  • Number of Positions: 20
  • Number of Rows: 2
  • Features: Solder Retention
  • Contact Finish: Gold
  • Mounting Type: Surface Mount
  • Height Above Board: 0.130" (3.30mm)
  • Mated Stacking Height: 4mm and 4.5mm
  • Packaging: Tape & Reel or Cut Tape
  • Standard Package Size: 10,000 pieces
  • Product Status: Obsolete
