Products specifications

Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Packaging Bulk
Status Obsolete
Transistor Type NPN
Current - Collector (Ic) (Maximum) 700mA
Voltage - Collector Emitter Breakdown (Maximum) 15V
Vce Saturation (Maximum) at Ib, Ic 80mV at 10mA, 100mA
Current - Collector Cutoff (Maximum) 1μA (ICBO)
DC Current Gain (hFE) (Minimum) at Ic, Vce 280 at 50mA, 2V
Maximum Power 250mW
Frequency - Transition 250MHz
Temperature Range - Operating 125°C
Mounting Style Through Hole
Manufacturer Package 3-SIP
Supplier Device Package 3-SPA
Family Part Number 2SD1012
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Win Source Part Number 1126113-2SD1012G-SPA
Manufacturer Homepage www.onsemi.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 2SD1012G-SPA CAD Model

Description

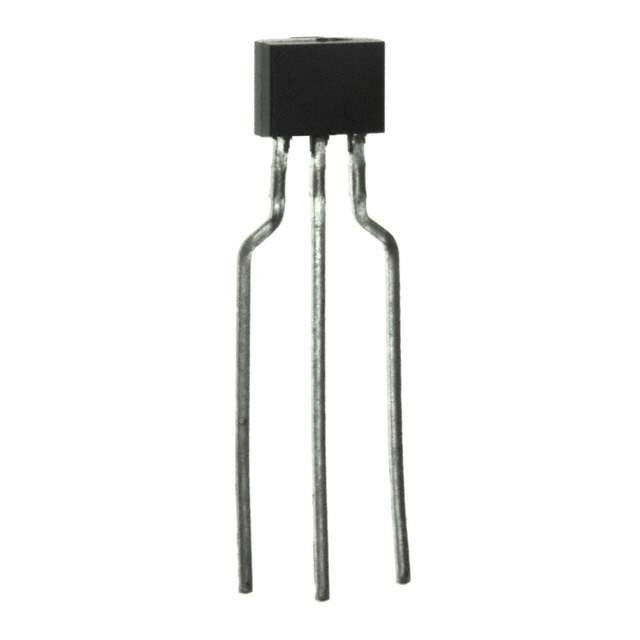

ON Semiconductor 2SD1012G-SPA Bipolar Transistor

The ON Semiconductor 2SD1012G-SPA is a high-performance bipolar junction transistor (BJT) designed for use in a broad range of electronic applications. This NPN transistor is ideal for power amplification and switching, offering a blend of reliability and efficiency that makes it a go-to component for engineers and designers.

Key Features:

  • High Current Capacity: The 2SD1012G-SPA can handle continuous collector currents up to 1A, making it suitable for moderate power applications.
  • Low Saturation Voltage: With a low V<sub>CE(sat), this transistor ensures reduced power loss and improved efficiency, which is critical for power-sensitive designs.
  • High Power Dissipation: A power dissipation of 900mW allows this device to sustain moderate thermal conditions without compromising performance.
  • Complementary PNP Type Available: For applications requiring a push-pull configuration, a complementary PNP transistor is also offered by ON Semiconductor.
  • Compact Package: Encased in a TO-92 package, the 2SD1012G-SPA is designed for easy integration into a variety of circuit layouts.

Applications:

The 2SD1012G-SPA is versatile and can be used in numerous applications, including:

  • Audio Power Amplifiers
  • Signal Processing
  • DC-DC Converters
  • Motor Control Circuits
  • Switching Regulators
  • Driver Stages in Hi-Fi Amplifiers

Technical Specifications:

Parameter Value Collector-Emitter Voltage (V<sub>CEO) 50V Collector-Base Voltage (V<sub>CBO) 60V Emitter-Base Voltage (V<sub>EBO) 7V Collector Current (I<sub>C) 1A Power Dissipation (P<sub>D) 900mW Operating Junction Temperature (T<sub>j) -55°C to +150°C

With its robust performance and ON Semiconductor's reputation for quality, the 2SD1012G-SPA is a reliable choice for designers looking to create efficient and durable electronics.
