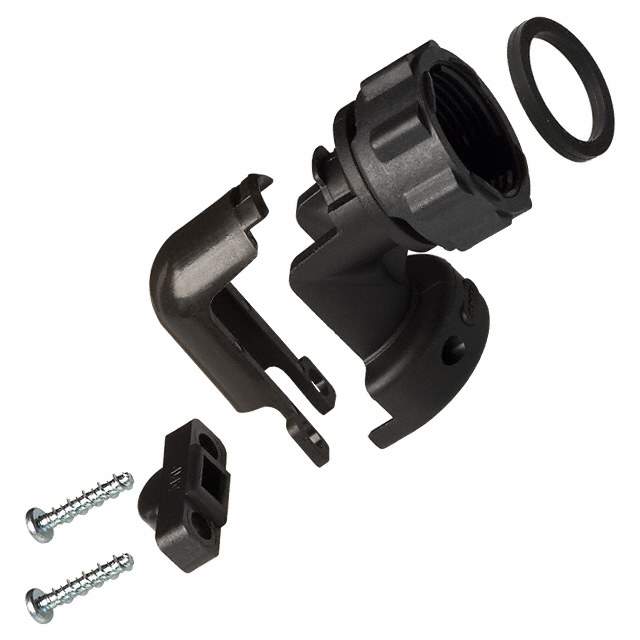

1546347-2 Real Image
Same model may have multiple batches, images only for reference.

1546347-2

Part No 1546347-2
Manufacturer TE Connectivity
Catalog Circular Connectors
Description CONN BACKSHELL W/CLAMP SZ 11 BLK / Black Connector Backshell, Cable Clamp 5/8-24 UNEF 11
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Backshells and Cable Clamps
Mfr TE Connectivity AMP Connectors
Series CPC
Package Bag
Type Backshell, Cable Clamp
Cable Opening 0.329" (8.36mm)
Shell Size - Insert 11
Thread Size 5/8-24 UNEF
Cable Exit 90°
Material Polyamide (PA), Nylon
Color Black
Features Clamp Screws, Cover
Includes 6 pcs - 3 pc Cable Clamp, 1 Flat Ring, 2 Screws
Material Flammability Rating UL94 V-0
For Use With/Related Products CPC Connectors
Base Product Number 1546347
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Other Names 15463472,A32501
Standard Package 1
Win Source Part Number 1230733-1546347-2
Ultra Librarian 3D Model Ultra Librarian 1546347-2 CAD Model

Description

The CPC backshell and cable clamp from TE Connectivity AMP Connectors is designed for CPC connectors.

  • Shell Size: 11
  • Cable Opening: 0.329 inches
  • Included Components: Six pieces, three cable clamps, one flat ring, and two screws
  • Application: Suitable for use in various electronic devices such as industrial machinery, medical equipment, and aerospace systems.
