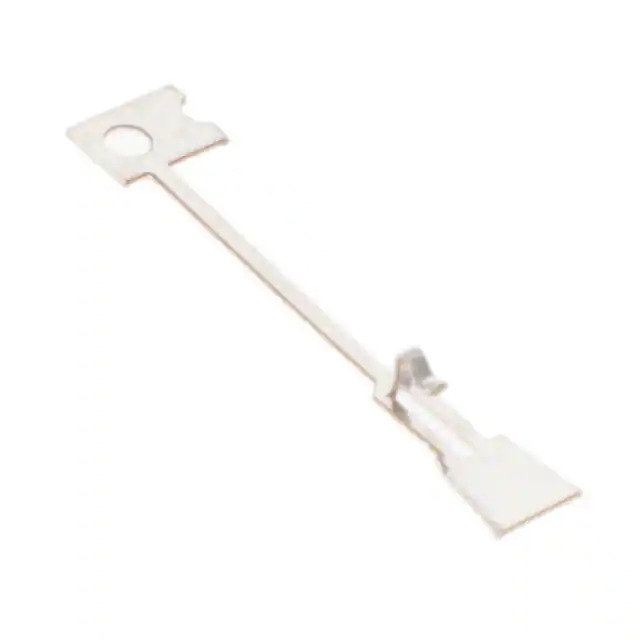

1544242-1 TE Connectivity
Same model may have multiple batches, images only for reference.

1544242-1

Part No 1544242-1
Manufacturer TE Connectivity
Catalog Unclassified
Description SIL CONTACT Y1 THROUGH HOLE / SIL Contact Y1 Through Hole Tin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Contacts - Leadframe
Mfr TE Connectivity AMP Connectors
Series -
Package Tape & Reel (TR)
Product Status Active
Clip Style SIL
Clip Type Y1
Clip Length 0.055" (1.40mm)
Pin Length 0.374" (9.50mm)
Termination Through Hole
Frame Thickness 0.010" (0.25mm)
Frame Width 0.713" (18.10mm)
Pitch 0.100" (2.54mm)
Contact Material Phosphor Bronze
Contact Finish Tin
Board Thickness 0.045" (1.14mm)
Features -
Base Product Number 1544242
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364135-1544242-1
Ultra Librarian 3D Model Ultra Librarian 1544242-1 CAD Model

Description

The TE Connectivity AMP Connectors 1544242-1 is a leadframe contact designed for through-hole termination.

  • Contact Finish: Tin
  • Termination Type: Through-Hole
  • Pitch: 0.100" (2.54mm)
  • Clip Style: SIL
  • Base Product Number: 1544242
  • Product Status: Active
  • Packaging: Tape and Reel
