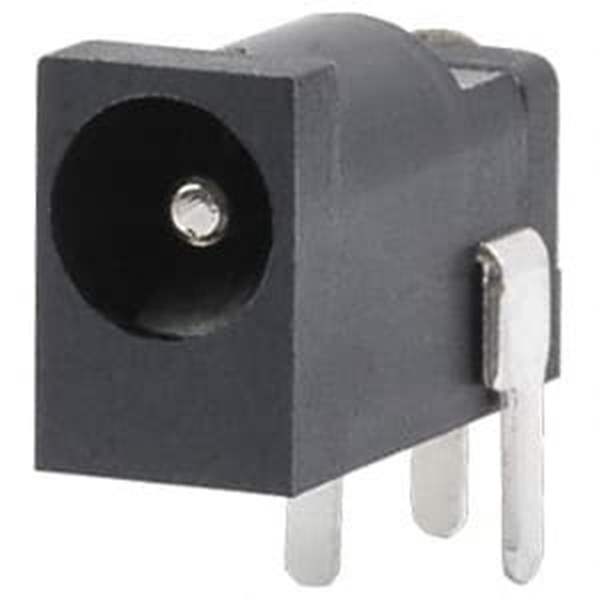

The PJ-031DH is a power connector jack designed for various electronic applications. It is a male jack with solder termination and is unshielded. The connector is made of brass and copper alloy for optimal conductivity.

• Voltage Rating: 24VDC
• Current Rating: 3.5A
• Conductors: 2
• Contacts: 3
• Switch: Single, Normally Closed
• Mating Diameter: 1.30mm ID (0.051") and 3.50mm OD (0.138")
• Actual Diameter: 0.051" (1.30mm ID) and 0.157" (4.00mm OD)
• Housing Material: Polybutylene Terephthalate (PBT)
• Flammability Rating: UL94 V-0
• Mounting: Through Hole or Right Angle
• Temperature Range: -25°C to 85°C
• Standard Package: 1,000 pcs
• Product Status: Active
• REACH Compliance: Unaffected
