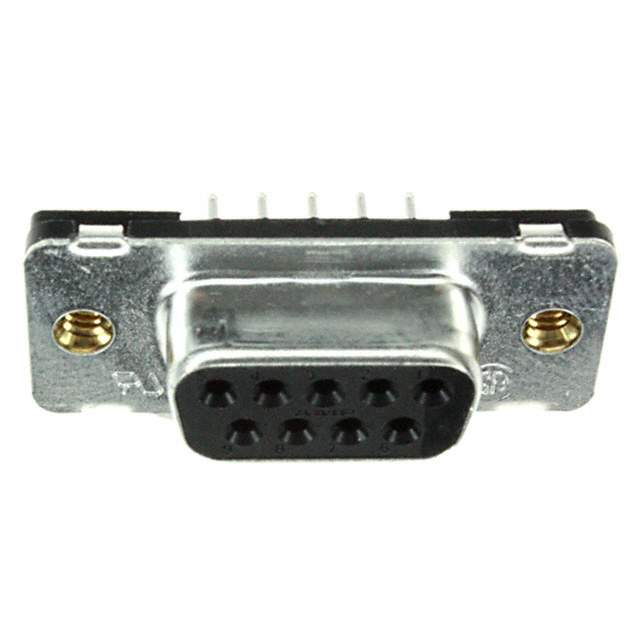

5747150-8

Name: 5747150-8
Brand: TE Connectivity
SKU: 1217425
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	5747150-8
Manufacturer	TE Connectivity
Catalog	D - Sub Connectors
Description	CONN D-SUB RCPT 9POS VERT SLDR / 9 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>D-Sub Connectors
Mfr	TE Connectivity AMP Connectors
Series	AMPLIMITE HD-20
Package	Tube
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Number of Positions	9
Number of Rows	2
Mounting Type	Through Hole
Shell Size, Connector Layout	1 (DE, E)
Contact Type	Signal
Flange Feature	Housing/Shell (4-40)
Termination	Solder
Shell Material, Finish	Steel, Tin Plated
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	6A
Voltage Rating	125V
Color	Black
Dielectric Material	Polyester
Contact Material	Phosphor Bronze
Temperature Range - Operating	-55°C ~ 105°C
Base Product Number	5747150
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	2266-5747150-8,A34072,57471508,-5747150-8-SI
Standard Package	17
Win Source Part Number	1217425-5747150-8
Ultra Librarian 3D Model	Ultra Librarian 5747150-8 CAD Model

Alternative Products

Description

The 1217425-5747150-8 is a female socket receptacle connector in the AMPLIMITE HD-20 series.

Positions: 9
Connector Type: D-sub
Contact Type: signal
Termination: solder
Contact Finish: gold with a thickness of 30.0µin (0.76µm)
Package: tube
Contact Material: phosphor bronze
Connector Style: D-sub
Voltage Rating: 125V
Ingress Protection: not specified
Material Flammability Rating: UL94 V-0
Standard Package: 17
Flange Feature: housing/shell (4-40)
Shell Material/Finish: steel, tin plated
Dielectric Material: polyester
Shell Size/Connector Layout: 1 (DE, E)
Mounting Type: through hole
Temperature Range of Operation: -55°C ~ 105°C
