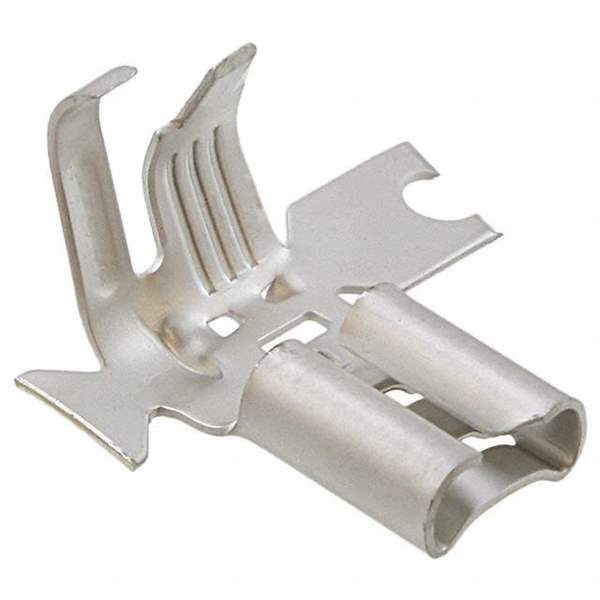

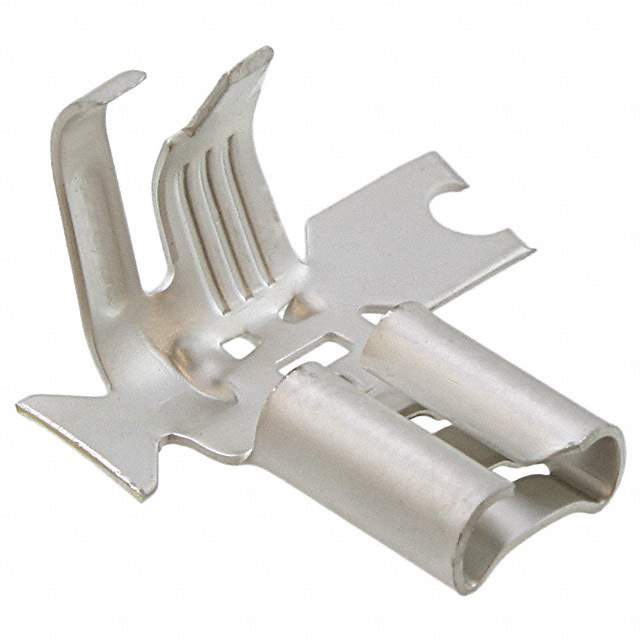

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Angled - 90°, Flag
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.250" (6.35mm)
Termination Crimp
Wire Gauge 16-20 AWG
Insulation Non-Insulated
Mounting Free Hanging (In-Line), Right Angle
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.110" ~ 0.170" (2.79mm ~ 4.32mm)
Base Product Number 150699
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number A107157TR,2266-150699-2TR,150699-2-ND,A107157CT,1506992
Standard Package 5,000
Win Source Part Number 1333544-150699-2
Ultra Librarian 3D Model Ultra Librarian 150699-2 CAD Model

Description

The 1333544-150699-2 is a quick disconnect connector from TE Connectivity AMP Connectors.

  • Package: Reel
  • Terminal Type: Female, Angled-90 Degree, Flag
  • Standard Package: 5,000
  • Contact Material: Brass
