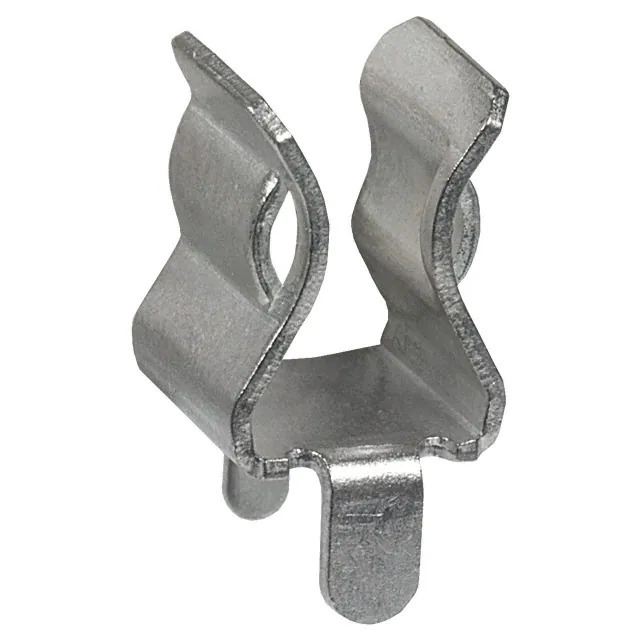

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Circuit Protection - Fuseholders
Mfr Keystone Electronics
Series -
Package Bulk
Product Status Active
Mounting Type Through Hole
Fuse Size 0.197" Dia (5mm)
Current Rating (Amps) 15 A
For Use With/Related Products 5mm Dia Fuses
Fuse Type Cartridge
Fuseholder Type Clip
Number of Circuits 1
Voltage -
Orientation Horizontal
Termination Style PC Pin
Contact Material Brass
Contact Finish Tin
Approval Agency UL
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1361535-3518P
Ultra Librarian 3D Model Ultra Librarian 3518P CAD Model

Description

The Keystone Electronics 1361535-3518P is a circuit protection fuseholder designed for through-hole mounting. Keystone Electronics manufactures it.

  • Mounting Type: Through Hole
  • Fuse Size: 5mm Diameter
  • Current Rating: 15 Amps
  • Contact Finish: Tin
  • Contact Material: Brass
  • Orientation: Horizontal
  • Termination Style: PC Pin
  • Approval Agency: UL
  • Packaging: Bulk
  • Status: Active
