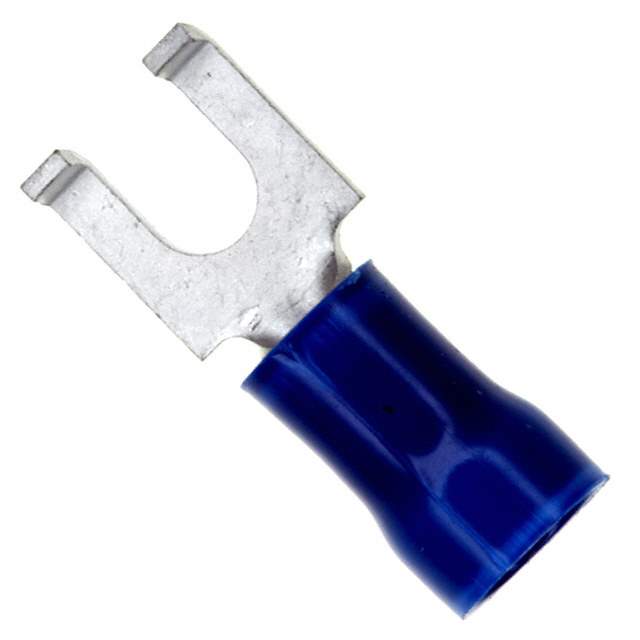

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Spade Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Terminal Type Flanged
Stud/Tab Size 6 Stud
Width - Outer Edges 0.294" (7.47mm)
Length - Overall 0.780" (19.81mm)
Mounting Free Hanging (In-Line)
Termination Crimp
Wire Gauge 14-16 AWG
Insulation Insulated
Features Serrated Termination
Color Blue
Contact Finish Tin
Contact Material Copper
Insulation Diameter 0.118" ~ 0.193" (3.00mm ~ 4.90mm)
Material - Insulation Poly-Vinyl Chloride (PVC)
Length - Ring Center to Termination 0.203" (5.16mm)
Length - Termination 0.416" (10.57mm)
Tongue Inside Opening 0.145" (3.68mm)
Base Product Number 3241
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number -28-20007-0-SI-ND,-28-20007-00-SI-ND,-324165-SI,28-20007-00,-28-20007-00-SI,A0985,-28-20007-0-SI
Standard Package 1,000
Win Source Part Number 1333816-324165
Ultra Librarian 3D Model Ultra Librarian 324165 CAD Model

Description

The TE Connectivity AMP Connectors 324165 is a spade connector terminal that is ideal for various applications.

  • Terminal Type: Insulated Flanged
  • Stud/Tab Size: 6 stud
  • Termination Feature: Serrated
  • Termination Type: Crimp
  • Contact Finish: Tin
  • Wire Gauge: 14-16 AWG
  • Contact Material: Copper
  • Insulation Diameter: 0.118 inches to 0.193 inches
  • Width: 0.294 inches
  • Overall Length: 0.78 inches
  • Length of Ring Center to Termination: 0.203 inches
  • Length of Termination: 0.416 inches
  • Tongue Inside Opening: 0.145 inches
  • Mounting Type: Free-hanging (in-line)
  • Packaging: Bulk
  • Standard Package: 1000
  • ECCN: EAR99 compliant
  • REACH: Not affected
  • HTSUS Code: 8536.90.4000
  • Other Part Numbers: -28-20007-0-SI-ND, -28-20007-00-SI-ND, -324165-SI, 28-20007-00, 28-20007-00-SI, and A0985
