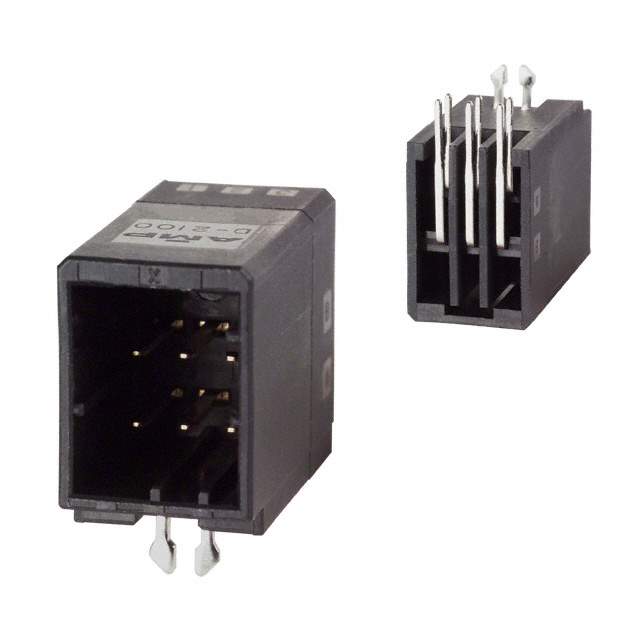

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 34 Weeks
Features Connector Header Through Hole, Right Angle 6 position 0.098" (2.50mm)
Manufacturer TE Connectivity
Series Dynamic D-2100
Package Bulk
Operating Temperature Range -55°C ~ 105°C
Mounting Through Hole, Right Angle
Family Name 1376136
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number A29856-NDR, -1376136-1-SI, A29856, -1376136-1-CSI, 13761361
Quantity per package 46
Popularity High
Supply and Demand Status Balance
Win Source Part Number 905286-1376136-1
Ultra Librarian 3D Model Ultra Librarian 1376136-1 CAD Model

Description

The 905286-1376136-1 is a right-angle connector header through-hole with 6 positions and a pitch of 0.098 inches.

  • Mounting: Right-Angle, Through-Hole
  • Positions: 6
  • Pitch: 0.098 inches
  • Series: Dynamic D-2100
  • Operating Temperature Range: -55°C to 105°C
  • Package: Bulk
  • Quantity per Package: 46
  • Manufacturer: TE Connectivity
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • Estimated Production Lead Time: 34 weeks
  • REACH Status: Unaffected
  • HTSUS: 8536.69.4040
