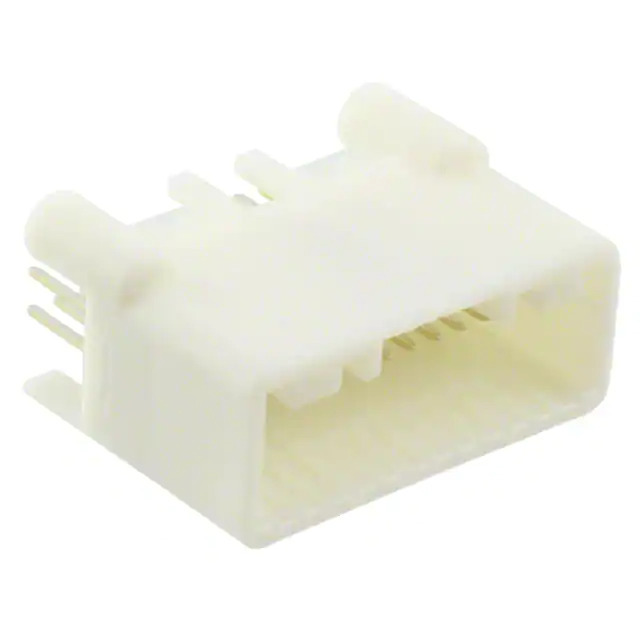

1376111-7 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series -
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.087" (2.20mm)
Number of Positions 24
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.217" (5.50mm)
Contact Length - Post 0.157" (4.00mm)
Overall Contact Length -
Insulation Height 0.921" (23.39mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Mounting Flange
Temperature Range - Operating -30°C ~ 105°C
Ingress Protection -
Material Flammability Rating UL94 HB
Insulation Color Natural
Current Rating (Amps) -
Voltage Rating 12VDC
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications Automotive
Base Product Number 1376111
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1357254-1376111-7
Ultra Librarian 3D Model Ultra Librarian 1376111-7 CAD Model

Description

The TE Connectivity AMP Connectors Header Male Pins is a reliable connector designed for board to cable/wire applications.

  • Positions: 24-position
  • Rows: 2-row design
  • Pitch: 0.087" (2.20mm)
  • Feature: Shrouded with 4 walls
  • Termination: Solder termination
  • Application: Automotive
  • Temperature Range: -30°C to 105°C
  • Status: Active product
  • Mounting Type: Through hole
  • Package: Tube package
