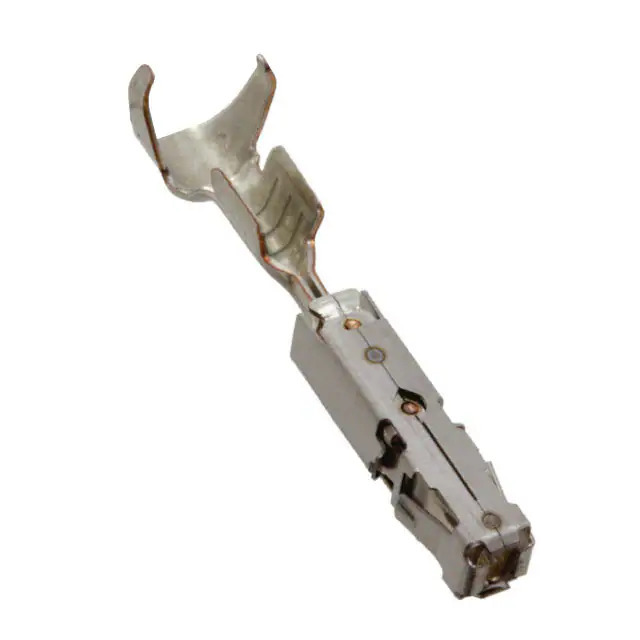

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Contacts
Mfr TE Connectivity AMP Connectors
Series MCP 1.5K
Package Tape & Reel (TR)
Product Status Active
Type -
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 18-20 AWG
Contact Finish Silver
Contact Finish Thickness -
Base Product Number 1241380
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1353846-1241380-3
Ultra Librarian 3D Model Ultra Librarian 1241380-3 CAD Model

Description

The 1241380 is a rectangular connector contact from the MCP 1.5K series by TE Connectivity AMP Connectors.

  • Series: MCP 1.5K
  • Contact Type: Socket
  • Termination: Crimp
  • Wire Gauge: 18-20 AWG
  • Contact Finish: Silver
  • Product Status: Active
  • REACH: Unaffected
