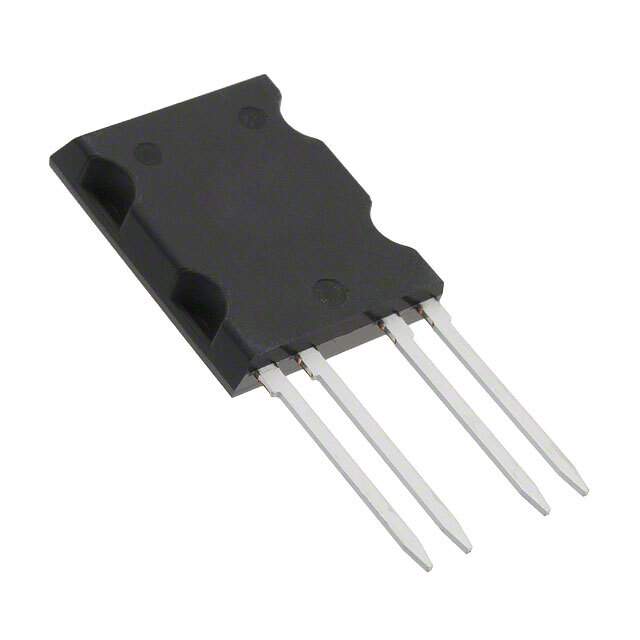

CPC1727J Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number 300000755-CPC1727J
Manufacturer IXYS Integrated Circuits Division
Category Relays Solid State Relays
Series CPC, OptoMOS®
Package Tube
Package / Case ISOPLUS264™
Supplier Device Package ISOPLUS264™
Voltage - Load 0 V ~ 250 V
Load Current 3.4 A
Voltage - Input 1.2VDC
Circuit SPST-NO (1 Form A)
Ultra Librarian 3D Model Ultra Librarian CPC1727J CAD Model

Description

The IXYS Integrated Circuits Division solid state relay is a high-performance component that is ideal for use in a variety of applications.

  • Circuit: SPST-NO (1 Form A)
  • Load Current: 3.4 A
  • Voltage Input: 1.2VDC
  • Voltage Load: 0 V ~ 250 V
  • Package: ISOPLUS264™ package
