Same model may have multiple batches, images only for reference.

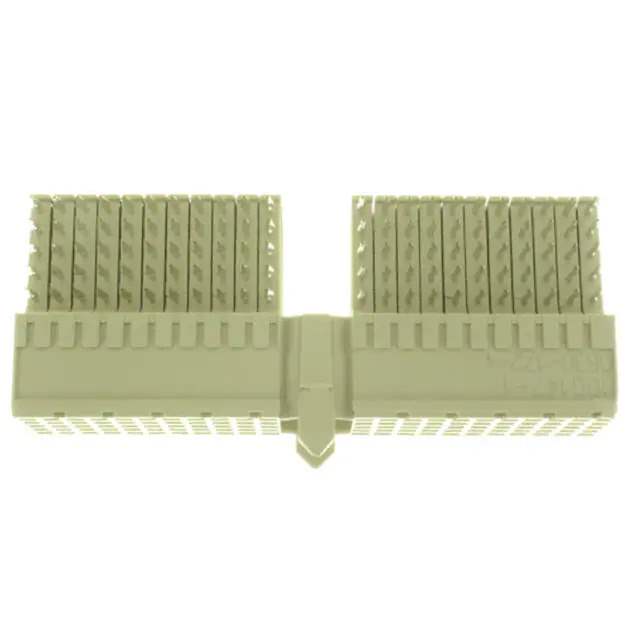

100147-1 Real Image
Same model may have multiple batches, images only for reference.

100147-1

Part No 100147-1
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN RECEPT 110POS 2MM PRESS-FIT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - Hard Metric, Standard
Mfr TE Connectivity
Series Z-PACK
Package Tube
Product Status Active
Connector Type Receptacle, Female Sockets
Connector Style A 22
Number of Positions 110
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 5
Mounting Type Board Edge, Through Hole, Right Angle
Termination Press-Fit
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Current Rating (Amps) 1.5 A
Voltage Rating 500Vrms
Temperature Range - Operating -55°C ~ 125°C
Base Product Number 100147
Standard Package 11 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 743447-100147-1
Ultra Librarian 3D Model Ultra Librarian 100147-1 CAD Model

Description

The 743447-100147-1 is a hard metric backplane connector designed for use in electronic devices. It is part of the Connectors, Interconnects - Backplane Connectors - Hard Metric, Standard category and is manufactured by TE Connectivity.

  • Series: Z-PACK
  • Positions: 110
  • Pitch: 0.079" (2.00mm)
  • Connector Type: Receptacle
  • Sockets: Female
  • Positions Loaded: All
  • Rows: 5
  • Termination: Press-fit
  • Contact Finish: Gold (30.0μin (0.76μm))
  • Package: Tube
  • Connector Style: A 22
  • Voltage Rating: 500Vrms
  • Standard Package: 11 pieces
  • Mounting Type: Board Edge, Through Hole, Right Angle
  • Operating Temperature: -55°C to 125°C
  • ECCN Code: EAR99
  • MSL Level: 1
  • Current Rating: 1.5 A
  • REACH Status: Vendor Undefined
  • HTSUS Code: 8536.69.4040
