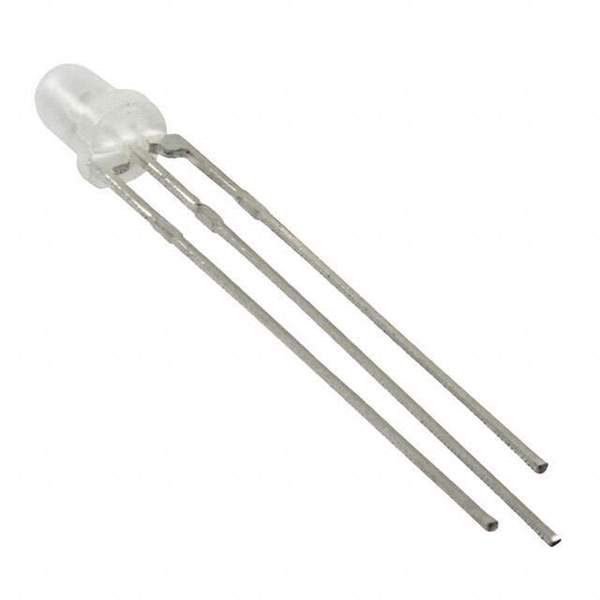

WP3VEGW Real Image
Same model may have multiple batches, images only for reference.

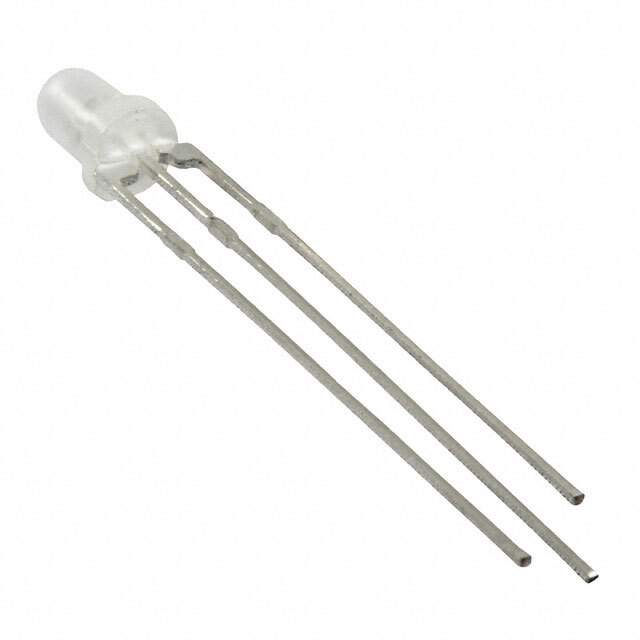

WP3VEGW

Part No WP3VEGW
Manufacturer Kingbright
Catalog LED Indication - Discrete
Description LED GREEN/RED DIFFUSED T-1 T/H / Green, Red 568nm Green, 617nm Red LED Indication - Discrete 2.2V Green, 2V Red Radial - 3 Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Manufacturer Kingbright
Packaging Bulk
Color Green, Red
Configuration Common Cathode
Lens Color White
Lens Transparency Diffused
Millicandela Rating 40mcd Green, 30mcd Red
Lens Style Round with Domed Top
Lens Size 3mm, T-1
Voltage - Forward (Vf) (Typ) 2.2V Green, 2V Red
Current - Test 20mA Green, 20mA Red
Viewing Angle 60°
Mounting Through Hole
Wavelength - Dominant 568nm Green, 617nm Red
Wavelength - Peak 565nm Green, 627nm Red
Case / Package Radial - 3 Leads
Supplier Device Package T-1
Size / Dimension 3.00mm Dia
Height (Max) 6.93mm
Base Product Number WP3V
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Part Number Q4807899,754-1221
Standard Package 500
Win Source Part Number 1331925-WP3VEGW
Ultra Librarian 3D Model Ultra Librarian WP3VEGW CAD Model

Description

The Kingbright WP3VEGW is a 3mm LED indication module that is ideal for use in a variety of applications.

  • Manufacturer: Kingbright
  • Lens: Diffused
  • Viewing Angle: 60 degrees
  • Millicandela Rating (Green): 40mcd
  • Millicandela Rating (Red): 30mcd
  • Forward Voltage (Green): 2.2V
  • Forward Voltage (Red): 2V
  • Package: Radial-3 Leads
  • Height: 6.93mm
  • Suitable for: use in a variety of applications, including automotive lighting, indicator lights, and other electronic devices that require LED indication.
