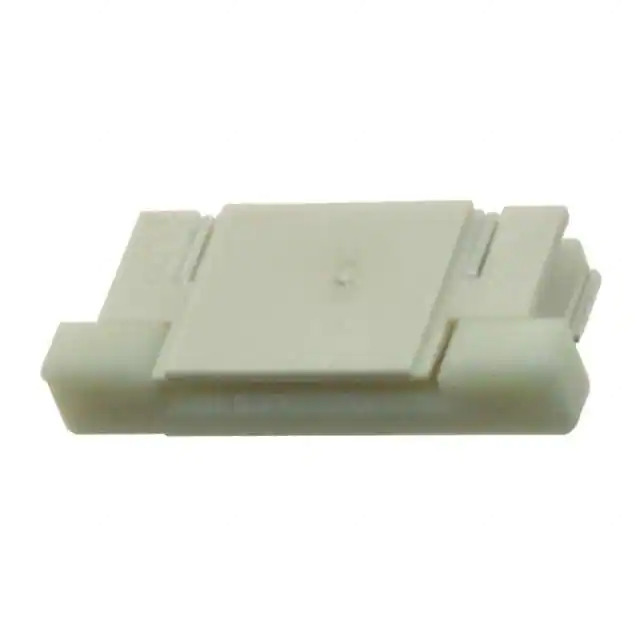

Same model may have multiple batches, images only for reference.

1-1734839-0

Name: 1-1734839-0
Brand: TE Connectivity
SKU: 1362737
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1-1734839-0
Manufacturer	TE Connectivity
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC TOP 10POS 0.5MM R/A / 10 Position FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr	TE Connectivity AMP Connectors
Series	-
Package	Tape & Reel
Product Status	Active
Flat Flex Type	FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top
Number of Positions	10
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.081" (2.05mm)
Locking Feature	Slide Lock
Cable End Type	Tapered
Contact Material	Phosphor Bronze
Contact Finish	Gold
Housing Material	Thermoplastic
Actuator Material	Thermoplastic
Features	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating	250V
Temperature Range - Operating	-20°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A
Contact Finish Thickness	Flash
Housing Color	Natural
Actuator Color	Ivory
Mating Cycles	-
Base Product Number	1734839
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1362737-1-1734839-0
Ultra Librarian 3D Model	Ultra Librarian 1-1734839-0 CAD Model

Description

The TE Connectivity AMP Connectors FFC, FPC Connector Assembly is a versatile and reliable connector designed for flexible flat cable applications.

Temperature Range: -20°C to 85°C
Features: Solder Retention and Zero Insertion Force (ZIF)
Contact Finish: Gold
Number of Positions: 10
Pitch: 0.020" (0.50mm)
Housing Material: Thermoplastic
