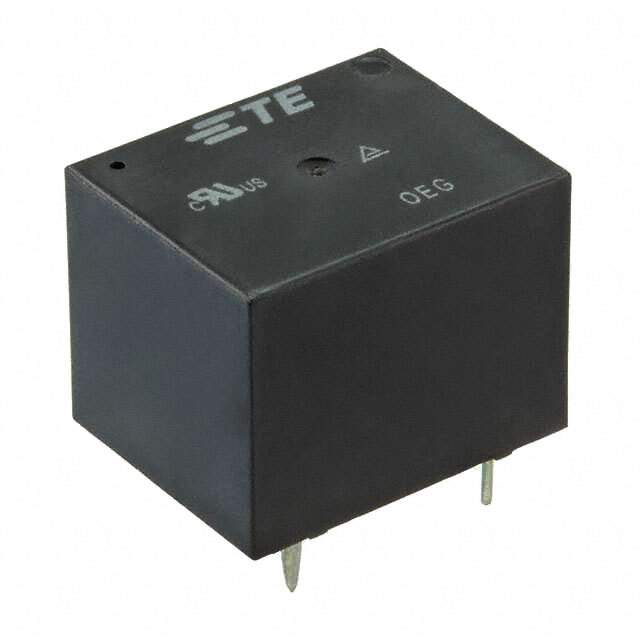

1-1721150-0 Real Image
Same model may have multiple batches, images only for reference.

1-1721150-0

Part No 1-1721150-0
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description General Purpose Relay, Orwh Series, Power, Non Latching, Spdt, 5 Vdc, 10 A Rohs Compliant: Yes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Ambient Temperature Range High 70 °C
Coil Power 360 mW
Coil Resistance 70 Ω
Coil Type Non-Latching
Coil Voltage (DC) 5 V
Contact Current Rating 10 A
Contact Material Silver
Contact Voltage Rating (AC) 277 V
Current Rating 10 A
Depth 15.5 mm
ELV Compliant
Height 15.7988 mm
Lead Free Yes
Length 18.9992 mm
Maximum Operating Temperature 85 °C
Mount PCB, Through Hole
Number of Contacts 1
Number of Pins 5
Power Consumption 360 mW
Power Rating 360 mW
REACH SVHC No SVHC
RoHS Compliant
Switching Current 10 A
Termination PCB
Throw Configuration SPDT
Voltage Rating (AC) 125 V
Weight 9.5 g
Width 15.5 mm
Win Source Part Number 1003900-1-1721150-0
Categories Signal Relays,Up to 2 Amps
Manufacturer TE Connectivity
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 1-1721150-0 CAD Model

Description

The 1003900-1-1721150-0 is a signal relay that is perfect for various electronic applications.

  • Contact Material: Silver
  • Contact Current Rating: 10 A
  • Coil Power: 360 mW
  • Power Rating: 360 mW
  • Number of Contacts: 1
  • Number of Pins: 5
  • Termination: PCB
  • Mounting: Through-Hole
  • Coil Voltage (DC): 5 V
  • Switching Current: 10 A
  • HTSUS Code: 8536.90.4000
  • Manufacturer: TE Connectivity
