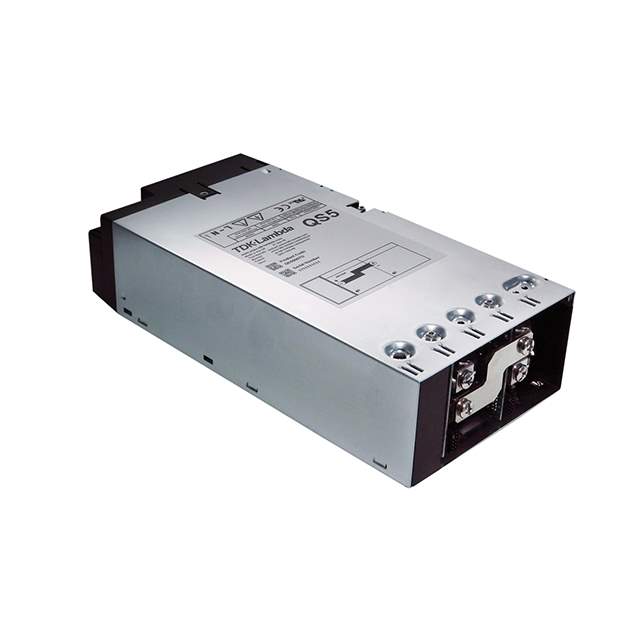

QS5000L6 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Converters
Mfr TDK-Lambda Americas Inc
Series QS
Package Box
Type Enclosed
Number of Outputs 1
Voltage - Input 90 ~ 264 VAC
Voltage - Output 1 24V
Current - Output 1 50 A
Power (Watts) 1200W
Applications ITE (Commercial), Laboratory, Medical
Voltage - Isolation 4 kV
Efficiency 91%
Temperature Range - Operating -20°C ~ 70°C (With Derating)
Features Adjustable Output, PFC, PMBus™, Remote Sense, Standby Output, Universal Input
Mounting Type Chassis Mount
Dimension 10.63" L x 5.00" W x 2.49" H (270.0mm x 127.0mm x 63.3mm)
Approval Agency CB, CE
Minimum Load Required No
Base Product Number QS5000
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9540
Other Names 285-3005
Standard Package 1
Win Source Part Number 1004949-QS5000L6
Ultra Librarian 3D Model Ultra Librarian QS5000L6 CAD Model

Description

The QS5000L6 is a power supply component manufactured by TDK-Lambda Americas Inc.

  • Manufacturer: TDK-Lambda Americas Inc.
  • Series: QS
  • Enclosure: Box
  • Features: Adjustable Output, PFC, PMBus™, Remote Sense, Standby Output, Universal Input
  • Power Rating: 1200W
  • Voltage Input: 90-264 VAC
  • Applications: ITE (Commercial), Laboratory, Medical
  • Supply and Demand: Balanced
