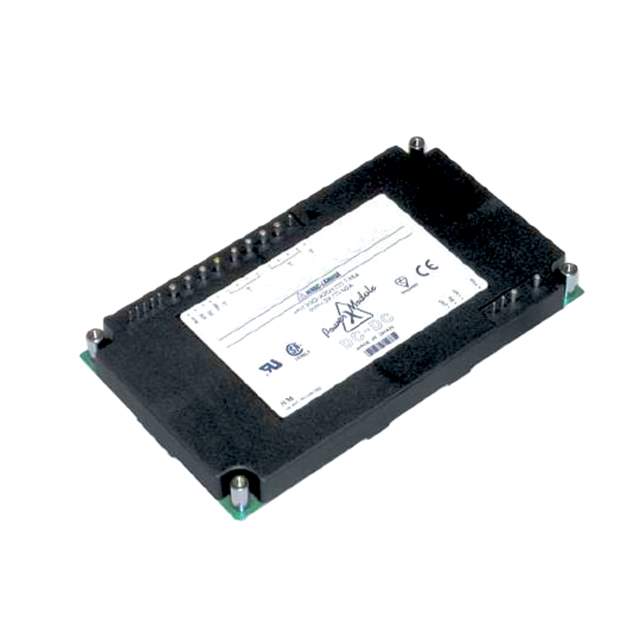

PH150S4812 Real Image
Same model may have multiple batches, images only for reference.

PH150S4812

Part No PH150S4812
Manufacturer TDK-Lambda Americas Inc.
Catalog Board Mount Modules
Description Module DC-DC 1-OUT 12V 12.5A 150W 10-Pin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package Module
Current - Output 1 12.5 A
Features OCP, OTP, OVP
Height 12.7 mm
Isolation Voltage 3 kV
Length 97.79 mm
Max Input Voltage 76 V
Max Operating Temperature 85 °C
Max Output Current 12.5 A
Max Power Dissipation 150 W
Min Input Voltage 36 V
Min Operating Temperature -20 °C
Mount Through Hole
Number of Outputs 1
Number of Pins 10
Output Current 12.5 A
Output Power 150 W
Output Voltage 12 V
Packaging Bulk
RoHS Compliant
Voltage - Output 1 12 V
Width 40.894 mm
Win Source Part Number 1232489-PH150S4812
Categories Board Mount Modules
Manufacturer TDK-Lambda Americas Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian PH150S4812 CAD Model

Description

The TDK-Lambda Americas Inc. PH150S4812 is a board mount module that comes with a bulk packaging.

  • Features: OCP, OTP, and OVP
  • Length: 97.79 mm
  • Height: 12.7 mm
  • Width: 40.894 mm
  • Pin Count: 10
  • Isolation Voltage: 3 kV
  • Output Count: Single
  • Output Current: 12.5 A
  • Output Voltage: 12 V
  • Output Power: 150 W
  • Max Input Voltage: 76 V
  • Min Input Voltage: 36 V
  • Max Output Current: 12.5 A
  • Mount: Through-Hole
  • RoHS Compliant: Yes
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 85 °C
