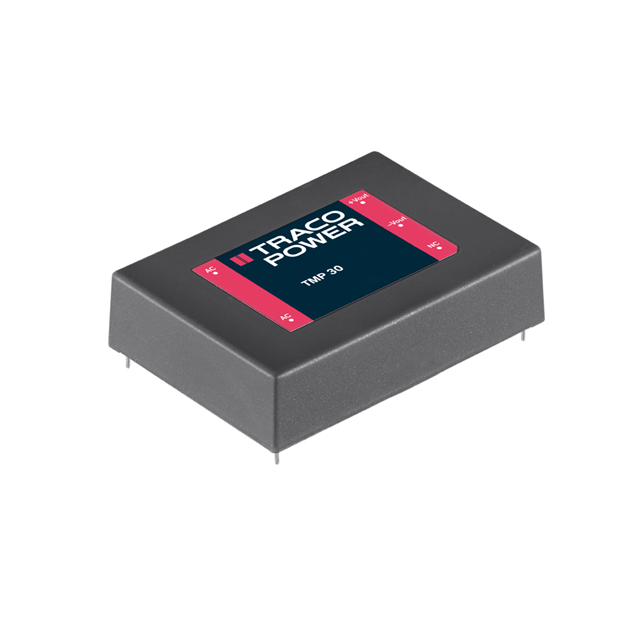

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - Board Mount>AC DC Converters
Mfr Traco Power
Series TMP (30W)
Package Box
Type Enclosed
Number of Outputs 3
Voltage - Input 85 ~ 264 VAC, 120 ~ 370 VDC
Voltage - Output 1 5V
Voltage - Output 2 15V
Voltage - Output 3 -15V
Current - Output (Max) 3A, 500mA, 500mA
Power (Watts) 29 W
Applications ITE (Commercial)
Features Universal Input
Temperature Range - Operating -25°C ~ 70°C (With Derating)
Efficiency 76%
Mounting Type Through Hole
Package / Case 7-DIP Module
Dimension 3.50" L x 2.50" W x 0.85" H (88.9mm x 63.5mm x 21.7mm)
Approval Agency CB, CE, cULus, cURus
Line Regulation 1%, 3%
Load Regulation ±1%
Base Product Number TMP 30
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Other Names 1951-1170
Standard Package 5
Win Source Part Number 1159375-TMP 30515
Ultra Librarian 3D Model Ultra Librarian TMP 30515 CAD Model

Description

This power supply board mount electronic component is part of the TMP (30W) series and is manufactured by Traco Power.

  • Series: TMP (30W)
  • Input: Universal
  • Enclosure: Box Type
  • Application: ITE (Commercial)
  • Standard Package: 5
  • Power Output: 29W
  • Input Voltage: 85 ~ 264 VAC, 120 ~ 370 VDC
  • Outputs: 3
  • Maximum Current Output: 3A, 500mA, 500mA
  • Output Voltages: 5V, 15V, and -15V
  • Efficiency: 76%
  • Line Regulation: 1%, 3%
  • Load Regulation: ±1%
  • Mounting Type: Through Hole
  • Package/Case: 7-DIP Module
  • Operating Temperature: -25°C ~ 70°C (With Derating)
  • Dimension: 3.50" L x 2.50" W x 0.85" H (88.9mm x 63.5mm x 21.7mm)
  • Approvals: CB, CE, cULus, cURus
  • Alternative Parts: TMP30515
  • MSL: Not Applicable
  • REACH: REACH Unaffected
  • HTSUS: 8504.40.9510
  • Other Names: 1951-1170
  • Base Product Number: TMP 30
