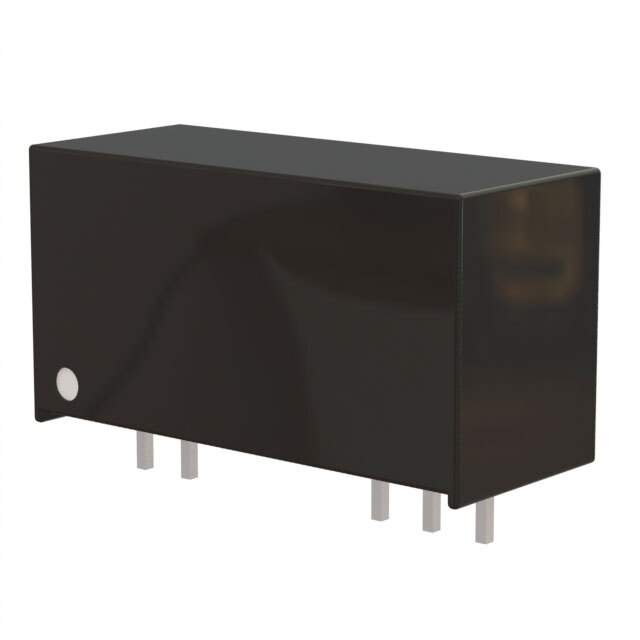

ITX4809SA Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr XP Power
Series ITX (6W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 9V
Current - Output (Max) 666mA
Power (Watts) 6 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 65°C
Efficiency 84%
Mounting Type Through Hole
Package / Case 8-SIP Module, 5 Leads
Dimension 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.2mm)
Standard Number 62368-1
Base Product Number ITX4809
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1470-2553-5
Standard Package 20
Win Source Part Number 1153751-ITX4809SA
Ultra Librarian 3D Model Ultra Librarian ITX4809SA CAD Model

Description

The ITX4809SA is a 6W isolated module DC-DC converter designed for use in ITE (Commercial) applications manufactured by XP Power.

  • Features: SCP
  • Package: Through-Hole 8-SIP module package with 5 leads
  • Voltage Isolation: 1.5 kV
  • Efficiency: 84%
  • Output(s): Single
  • Maximum Output Current: 666mA
  • Output Voltage: 9V
  • Input Voltage: 36V to 75V
  • Operating Temperature: -40°C to 65°C
  • Dimensions: 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.2mm)
