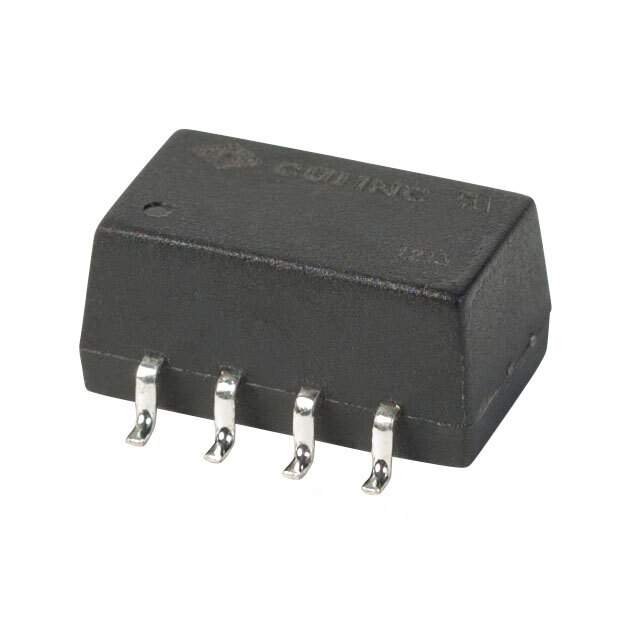

The VBT1-S5-S5-SMT-TR is an isolated DC-DC converter manufactured by CUI Inc. It's designed to provide a regulated 5V output from a 5V input, making it suitable for a variety of applications where electrical isolation and voltage regulation are required.

Applications

• Industrial control systems: Providing isolated power to sensors, actuators, and communication interfaces.
• Medical equipment: Used in patient monitoring devices, diagnostic equipment, and other medical applications requiring isolation for safety.
• Instrumentation: Powering sensitive measurement circuits and data acquisition systems.
• Telecommunications: Providing isolated power for communication interfaces and network devices.
• Aerospace: Employed in avionics systems, providing isolated power for critical components.

Features

• Input Voltage: 5VDC
• Output Voltage: 5VDC
• Isolation Voltage: Typically rated for 1000VDC or higher, providing robust electrical isolation.
• Surface Mount Technology (SMT): Designed for automated assembly, reducing manufacturing costs and improving reliability.
• Operating Temperature: Wide operating temperature range suitable for industrial environments.
• Short Circuit Protection: Built-in protection against short circuit conditions, enhancing reliability and preventing damage.
• Compact Size: Small footprint for space-constrained applications.

Benefits

• Electrical Isolation: Prevents ground loops and reduces noise, improving system performance and reliability.
• Voltage Regulation: Provides a stable and regulated output voltage, ensuring consistent performance of connected devices.
• Simplified Design: Reduces the need for external components, simplifying system design and reducing cost.
• Improved Safety: Provides electrical isolation, enhancing safety for both users and equipment.
• Increased Reliability: Robust design and built-in protection features ensure long-term reliability.

Additional Details

The VBT1-S5-S5-SMT-TR DC-DC converter is typically used in applications where galvanic isolation is required to protect sensitive circuits or to meet safety regulations. It is packaged in a surface-mount package for easy integration into PCB assemblies. The 'TR' suffix likely indicates that the part is provided in tape and reel packaging for automated assembly. The efficiency of the converter is an important parameter, as it affects the overall power consumption and heat dissipation of the system. The specific isolation voltage, efficiency, and other electrical characteristics can be found in the product datasheet provided by CUI Inc.
