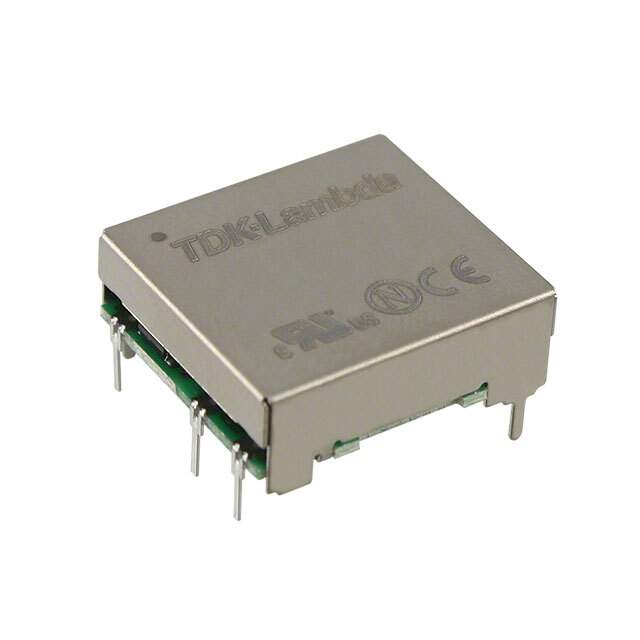

CC6-0512SF-E Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr TDK-Lambda Americas Inc
Series CC-E (6W)
Package Tray
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 12 ~ 15V
Current - Output (Max) 500mA
Power (Watts) 6 W
Voltage - Isolation 500 V
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case 7-DIP Module
Dimension 0.90" L x 0.83" W x 0.34" H (22.9mm x 21.1mm x 8.5mm)
Control Features Enable, Active Low
Base Product Number CC6-0512
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
Other Names CC60512SFE,445-2482
Standard Package 10
Win Source Part Number 1051419-CC6-0512SF-E
Ultra Librarian 3D Model Ultra Librarian CC6-0512SF-E CAD Model

Description

The TDK-Lambda Americas Inc CC-E (6W) is an isolated module DC-DC converter.

  • Power Rating: 6 W
  • Voltage Isolation: 500 V
  • Output: single output
  • Maximum Output Current: 500 mA
  • Input Voltage Range: between 4.5V and 9V
  • Output Voltage: between 12V and 15V
  • Control Features: enable and active low
  • Mounting Type: through hole
  • Package/Case: 7-DIP module
  • Temperature Range: between -40°C and 85°C
  • Dimension: 0.90" L x 0.83" W x 0.34" H (22.9mm x 21.1mm x 8.5mm)
  • Application: ITE (Commercial)
  • Package: tray package
