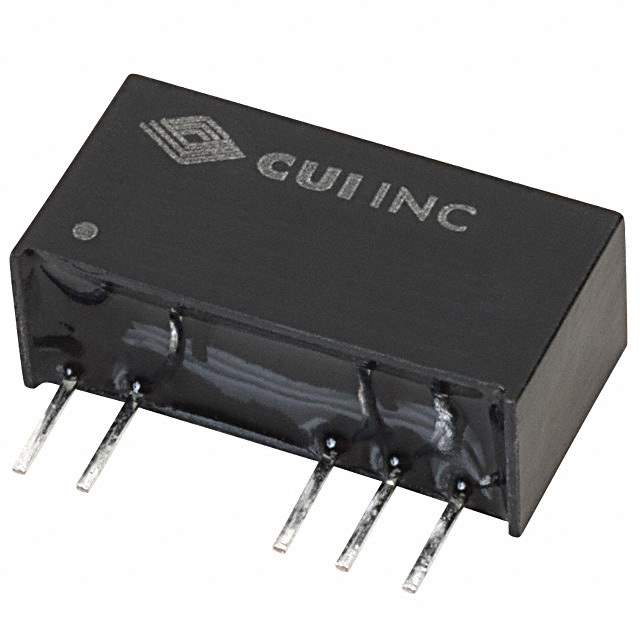

Same model may have multiple batches, images only for reference.

PEM2-S12-D15-S

Name: PEM2-S12-D15-S
Brand: CUI Inc.
SKU: 1320601
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	PEM2-S12-D15-S
Manufacturer	CUI Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 2W / Isolated Module DC DC Converter 2 Output 15V -15V 66.6mA, 66.6mA 10.8V - 13.2V Input
Datasheet	PEM2-S12-D15-S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	CUI Inc.
Packaging	Tube
Product Status	Last Time Buy
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	66.6mA, 66.6mA
Power (Watts)	2 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 105°C
Efficiency	84%
Mounting	Through Hole
Case / Package	7-SIP Module, 5 Leads
Size / Dimension	0.77" L x 0.28" W x 0.39" H (19.6mm x 7.0mm x 10.0mm)
Approval Agency	CB Scheme, EN, IEC, UL
Standard Number	55024; 55032 Class A; 60950-1
Base Product Number	PEM2-S12
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	PEM2S12D15S,102-2776,2266-PEM2-S12-D15-S
Standard Package	25
Win Source Part Number	1320601-PEM2-S12-D15-S
Ultra Librarian 3D Model	Ultra Librarian PEM2-S12-D15-S CAD Model

Alternative Products

Description

The CUI Inc. PEM2-S12 series isolated module, Win Source Part Number 1320601-PEM2-S12-D15-S, is a 2W DC DC converter.

Feature: SCP features
Efficiency: 84%
Package: 7-SIP module with 5 leads
Temperature Range: -40°C to 105°C
Outputs: 2 outputs
Maximum Output Current: 66.6mA
Input Voltage Range: 10.8V to 13.2V
Voltage Output 1: 15V
Voltage Output 2: -15V
Base Product Number: PEM2-S12
Product Status: last time buy
Approvals: CB scheme, EN, IEC, and UL approved
RoHS Compliant: Yes
