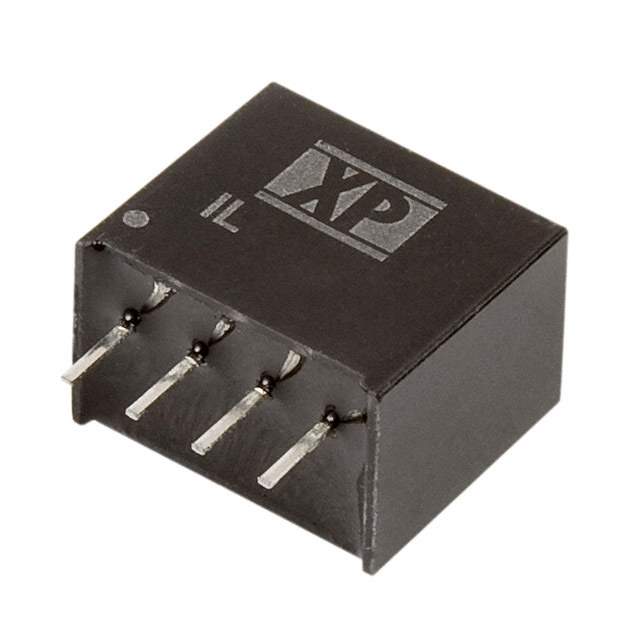

IL2403S Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr XP Power
Series IL (2W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 3.3V
Current - Output (Max) 400mA
Power (Watts) 2 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 74%
Mounting Type Through Hole
Package / Case 4-SIP Module
Dimension 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm)
Base Product Number IL2403
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1470-1487-5
Standard Package 40
Win Source Part Number 1173551-IL2403S
Ultra Librarian 3D Model Ultra Librarian IL2403S CAD Model

Description

The IL2403S is a 2W isolated module DC-DC converter designed for ITE (Commercial) applications.

  • Power: 2W
  • Application: ITE (Commercial)
  • Voltage Isolation: 1 kV
  • Maximum Output Current: 400mA
  • Input Voltage Range: 21.6V to 26.4V
  • Output Voltage: 3.3V
  • Mounting Type: Through Hole
  • Package: 4-SIP Module
  • Efficiency: 74%
  • Operating Temperature: -40°C to 85°C
  • Dimensions: 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm)
  • Manufacturer: XP Power
