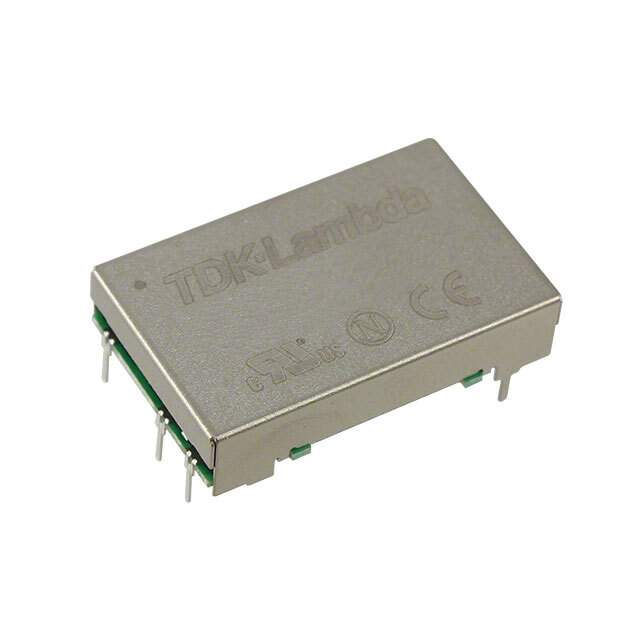

CC10-2412SF-E Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr TDK-Lambda Americas Inc
Series CC-E (10W)
Package Tray
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 12 ~ 15V
Current - Output (Max) 1A
Power (Watts) 10 W
Voltage - Isolation 500 V
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case 7-DIP Module
Dimension 1.40" L x 0.89" W x 0.33" H (35.6mm x 22.6mm x 8.5mm)
Control Features Enable, Active Low
Base Product Number CC10-2412
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Names CC102412SFE,445-2441
Standard Package 10
Win Source Part Number 1051402-CC10-2412SF-E
Ultra Librarian 3D Model Ultra Librarian CC10-2412SF-E CAD Model

Description

The CC-E (10W) series isolated module DC-DC converter from TDK-Lambda Americas Inc is designed for use in ITE (Commercial) applications.

  • Power Rating: 10W
  • Control Function: Enable, Active Low
  • Voltage Isolation: 500V
  • Output: Single
  • Maximum Output Current: 1A
  • Voltage Output Range: 12 ~ 15V
  • Input Voltage Range: 18V and 36V
  • Mounting: Through Hole
  • Package: 7-DIP module
  • Operating Temperature Range: -40°C and 85°C
  • Dimensions: 1.40" L x 0.89" W x 0.33" H (35.6mm x 22.6mm x 8.5mm)
  • HTSUS Code: 8504.40.9580
