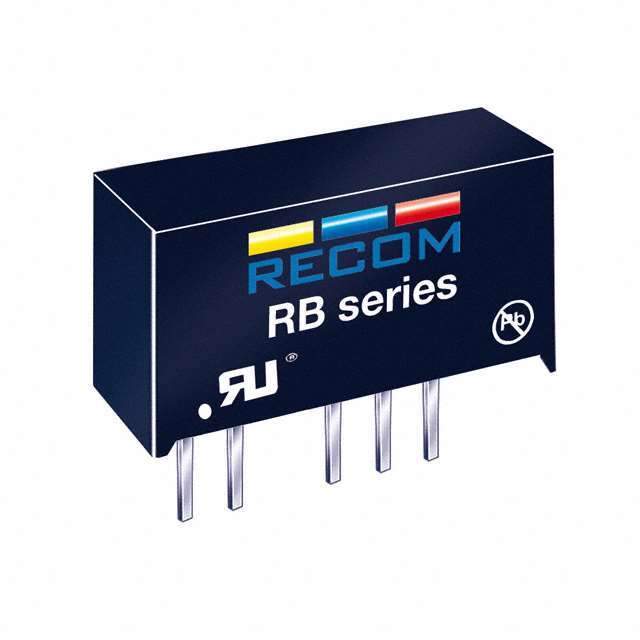

Same model may have multiple batches, images only for reference.

RB-2405S

Name: RB-2405S
Brand: Recom Power
SKU: 1320621
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	RB-2405S
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 21.6V - 26.4V Input
Datasheet	RB-2405S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Recom Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	21.6V
Voltage - Input (Max)	26.4V
Voltage - Output 1	5V
Current - Output (Max)	200mA
Power (Watts)	1 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	78%
Mounting	Through Hole
Case / Package	7-SIP Module, 5 Leads
Size / Dimension	0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm)
Base Product Number	RB-2405
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	RB-2405S-ND,10000098,RB2405S,945-1781-5
Standard Package	25
Win Source Part Number	1320621-RB-2405S
Ultra Librarian 3D Model	Ultra Librarian RB-2405S CAD Model

Alternative Products

Description

The RB-2405S is a 1W isolated module DC-DC converter designed and manufactured by Recom Power.

Packaging: Tube
SCP Feature: Yes
Length: 0.77 inches
Width: 0.24 inches
Height: 0.40 inches
Standard Package: 25
Mounting: Through-Hole
Maximum Output Current: 200mA
Input Voltage: 21.6V to 26.4V
Output Voltage: 5V
Efficiency: 78 percent
