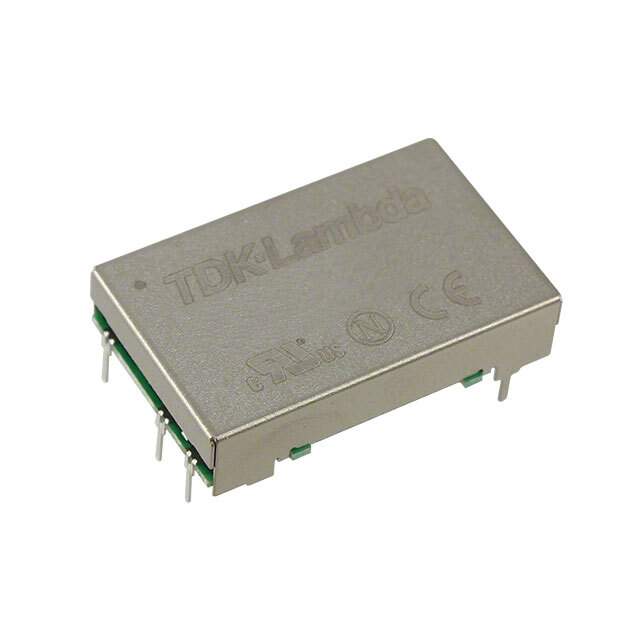

CC10-0505SF-E Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr TDK-Lambda Americas Inc
Series CC-E (10W)
Package Tray
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 5V
Current - Output (Max) 2A
Power (Watts) 10 W
Voltage - Isolation 500 V
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case 7-DIP Module
Dimension 1.40" L x 0.89" W x 0.33" H (35.6mm x 22.6mm x 8.5mm)
Control Features Enable, Active Low
Base Product Number CC10-0505
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
Other Names CC100505SFE,445-2431
Standard Package 10
Win Source Part Number 1051386-CC10-0505SF-E
Ultra Librarian 3D Model Ultra Librarian CC10-0505SF-E CAD Model

Description

The CC-E (10W) series isolated module DC-DC converter has a power of 10 W and a voltage isolation of 500 V.

  • Current Output: 2A
  • Voltage Input Range: 4.5V to 9V
  • Voltage Output: 5V
  • Mounting Technology: Through Hole
  • Control Feature: Enable, Active Low
  • Manufacturer: TDK-Lambda Americas Inc
  • Win Source Part Number: 1051386-CC10-0505SF-E
  • Temperature Range: -40°C to 85°C
  • Dimension: 1.40" L x 0.89" W x 0.33" H (35.6mm x 22.6mm x 8.5mm)
