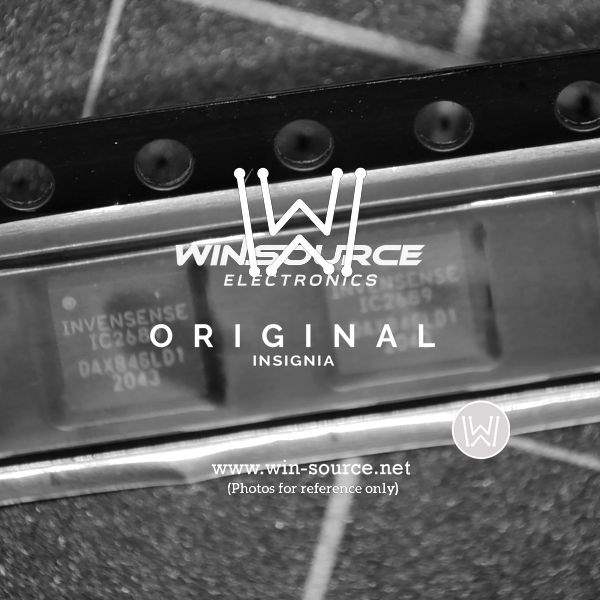

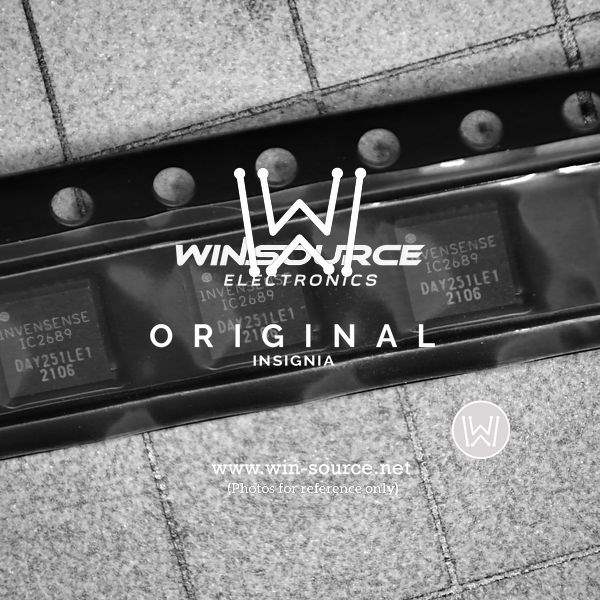

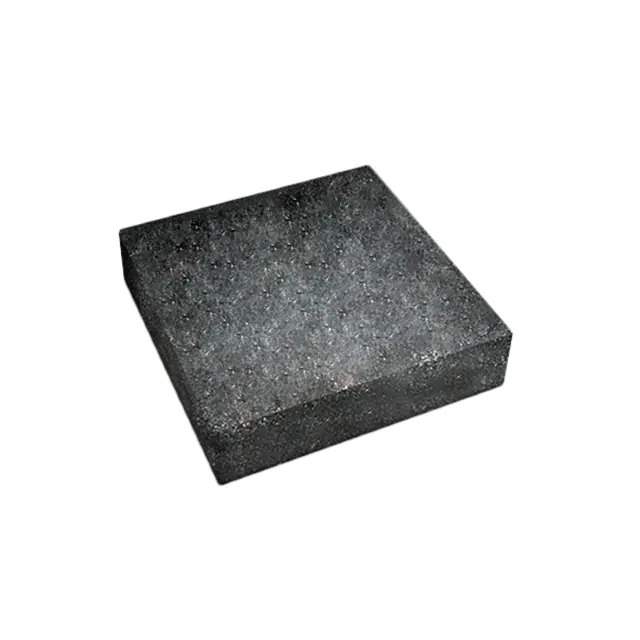

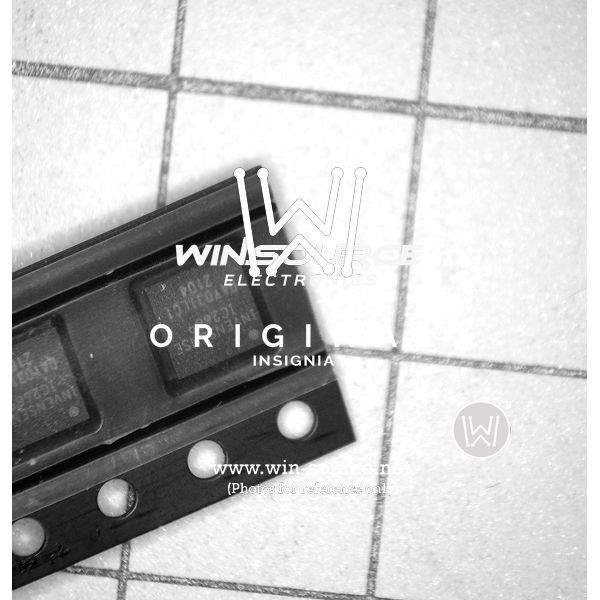

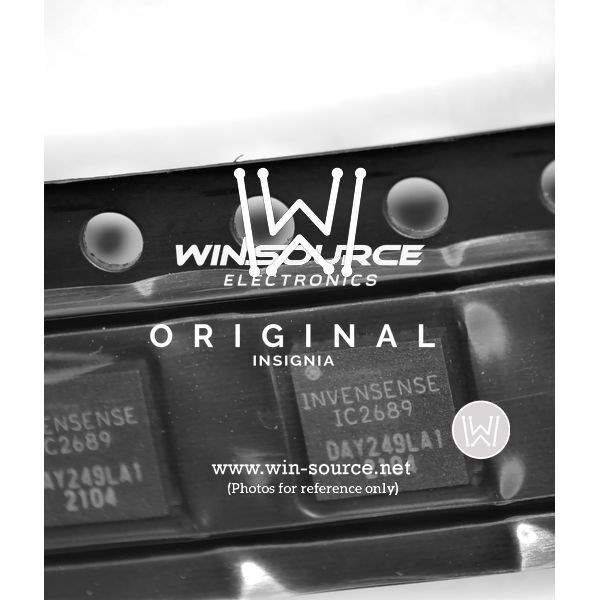

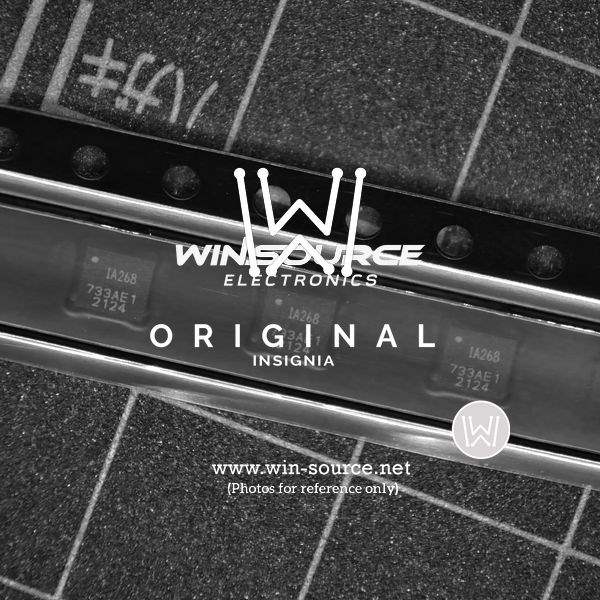

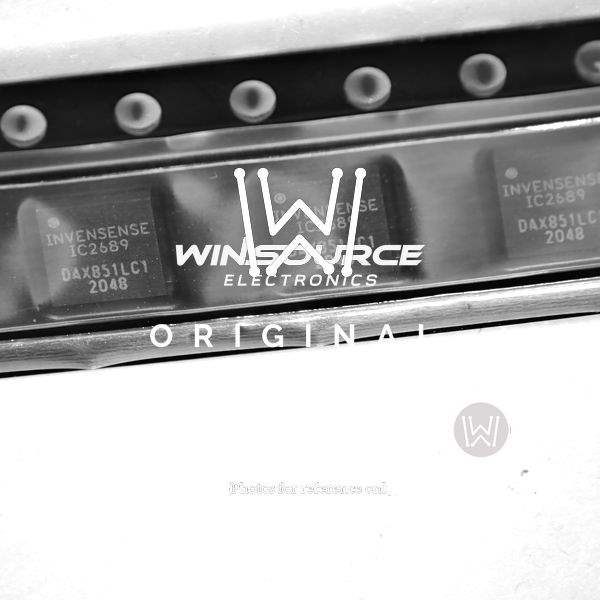

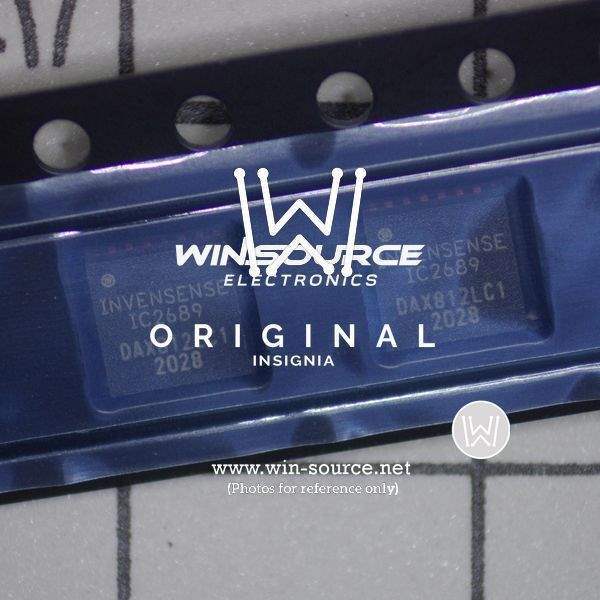

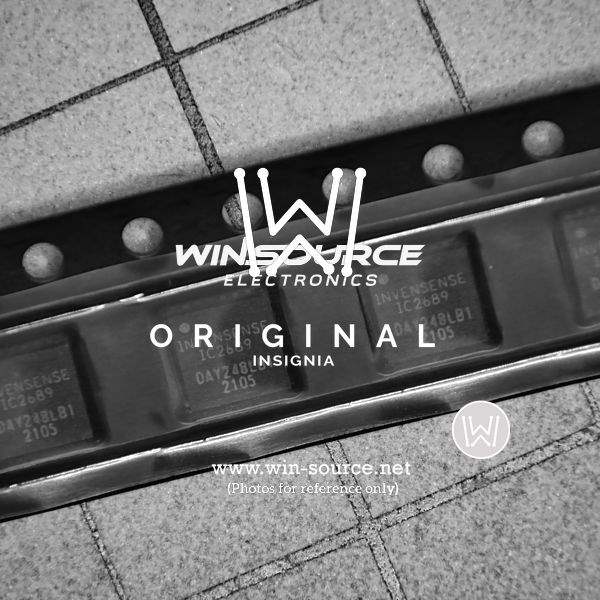

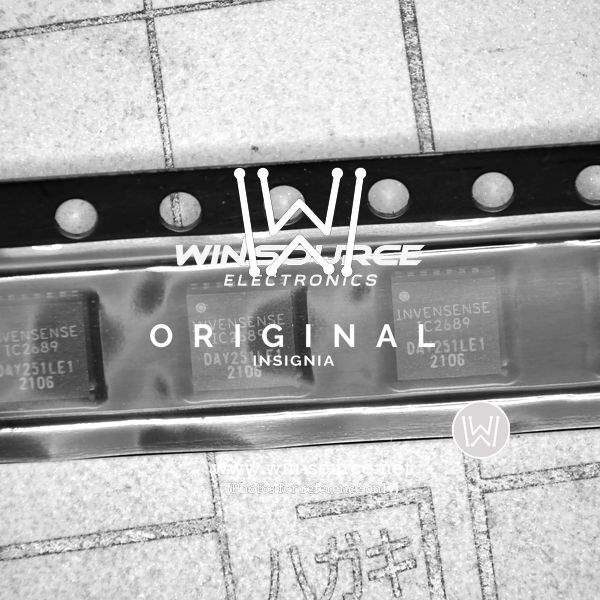

Same model may have multiple batches, images only for reference.

ICM-20689

Name: ICM-20689
Brand: TDK InvenSense
SKU: 843374
Availability: InStock
Rating: 4.85 (99 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ICM-20689
Manufacturer	TDK InvenSense
Catalog	Motion Sensors - IMU (Inertial Measurement Units)
Description	IMU ACCEL/GYRO/TEMP I2C/SPI QFN / Accelerometer, Gyroscope, Temperature, 6 Axis Sensor I2C, SPI Output
Datasheet	ICM-20689 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Sensors, Transducers - Motion Sensors - IMUs (Inertial Measurement Units)
Mfr	TDK InvenSense
Package	Tape & Reel
Product Status	Active
Sensor Type	Accelerometer, Gyroscope, Temperature, 6 Axis
Output Type	I2C, SPI
Temperature Range - Operating	-40°C ~ 85°C (TA)
Package / Case	24-VFQFN Module Exposed Pad
Supplier Device Package	24-QFN (4x4)
Mounting Type	Surface Mount
Standard Package	5,000 pcs
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	7A994
HTSUS	8542.39.0001
Win Source Part Number	843374-ICM-20689
Ultra Librarian 3D Model	Ultra Librarian ICM-20689 CAD Model

Alternative Products

Description

The ICM-20689 is a surface mountable motion sensor inertial measurement unit (IMU) manufactured by TDK InvenSense. The ICM-20689 operates in a temperature range of -40°C to 85°C, making it suitable for a wide range of applications. The ICM-20689 is an active product, meaning it is currently in production and readily available for integration into your electronic designs. It is commonly used in applications such as robotics, drones, and motion tracking systems.
