Products specifications Report Issue?

Category Sensors, Transducers - Motion Sensors - IMUs (Inertial Measurement Units)
Mfr STMicroelectronics
Series iNEMO
Package Tape & Reel
Product Status Obsolete
Sensor Type Accelerometer, Gyroscope, Temperature, 6 Axis
Output Type I2C, SPI
Temperature Range - Operating -40°C ~ 85°C (TA)

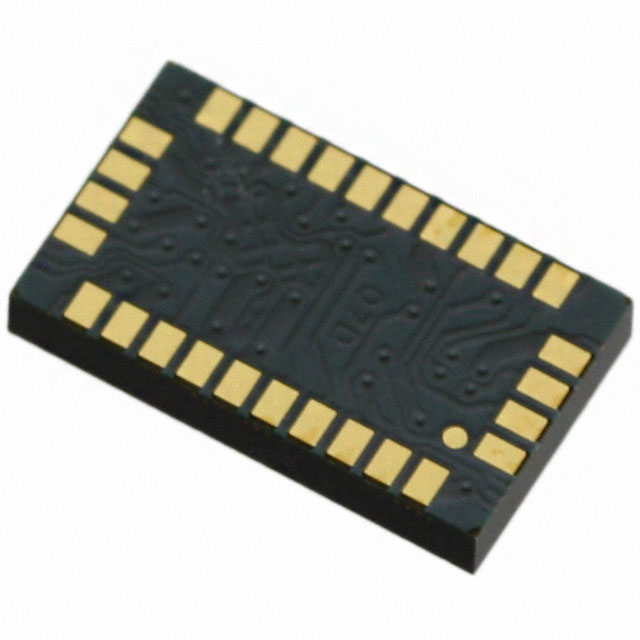

Package / Case 28-TFLGA Module
Supplier Device Package 28-LGA (7.5x4.4)
Mounting Type Surface Mount
Base Product Number LSM320
Standard Package 4,000 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN OBSOLETE
HTSUS 8542.39.0001
Win Source Part Number 192540-LSM320DLTR
Ultra Librarian 3D Model Ultra Librarian LSM320DLTR CAD Model

Description

LSM320DLTR Motion Sensor by STMicroelectronics

The LSM320DLTR is a state-of-the-art motion sensor manufactured by STMicroelectronics, a global leader in semiconductor solutions. This compact, high-precision sensor integrates both a 3-axis digital accelerometer and a 3-axis digital gyroscope into a single package, enabling it to provide comprehensive motion sensing capabilities for a wide range of applications.

The accelerometer component of the LSM320DLTR is capable of detecting acceleration up to ±16 g, while the gyroscope can measure angular rate up to ±2000 dps (degrees per second). This makes the LSM320DLTR an ideal choice for advanced motion detection requirements such as gaming and virtual reality input devices, inertial navigation systems for drones and other unmanned vehicles, and fitness and healthcare monitoring devices.

One of the key features of the LSM320DLTR is its high level of integration. By combining both accelerometer and gyroscope functionalities into one chip, it saves valuable space and reduces the complexity of design for engineers. Additionally, it offers I2C and SPI digital interfaces for easy communication with microcontrollers and other components in a system.

The sensor also boasts advanced power-saving features. It operates within a supply voltage range of 2.4 to 3.6V, and its power consumption is optimized for battery-powered devices, with normal operating modes that allow designers to balance performance and power efficiency according to their specific application needs.

Furthermore, the LSM320DLTR is designed with embedded intelligence, featuring programmable interrupts that enable immediate notification of motion detection, free-fall events, and other conditions without requiring constant polling by the host processor. This intelligent power management helps prolong battery life in portable applications.

STMicroelectronics has ensured that the LSM320DLTR is not only highly functional but also reliable and robust. It is fabricated using a proprietary process that enhances the sensor's resistance to mechanical stress and thermal cycling, ensuring stable performance over a wide temperature range and a long operational lifespan.

For developers and manufacturers looking for a versatile and efficient motion sensor, the LSM320DLTR from STMicroelectronics offers an excellent blend of performance, integration, and power efficiency, making it a top choice for the next generation of motion-sensitive applications.
