Same model may have multiple batches, images only for reference.

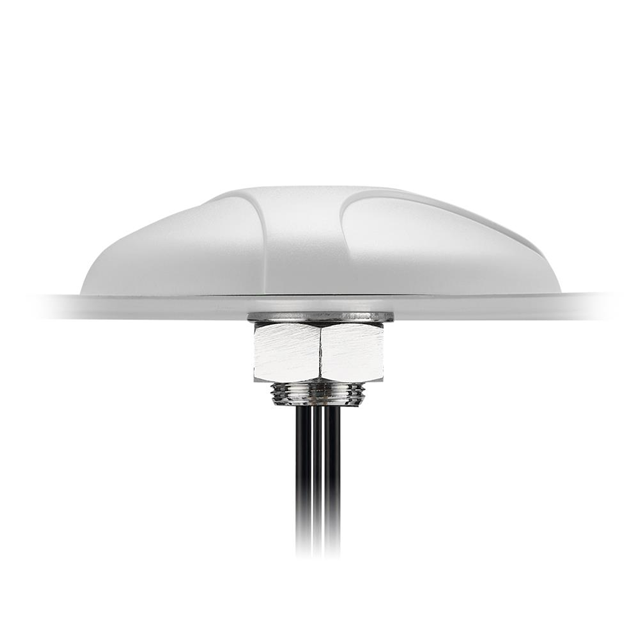

MA600.W.A.ABC.001 Real Image
Same model may have multiple batches, images only for reference.

MA600.W.A.ABC.001

Part No MA600.W.A.ABC.001
Manufacturer Taoglas Limited
Catalog RF Antennas
Description RF ANT 892MHZ/1.6GHZ DOME SMA ML / 892MHz, 1.6GHz, 1.9GHz, 2.4GHz, 5.3GHz CDMA, GPS, GSM, UMTS Dome RF Antenna 824MHz ~ 960MHz, 1.575GHz ~ 1.602GHz 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 4.7GHz ~ 5.9GHz 32dBi, 2.1dBi, 5.1dBi, 2.1dBi, 3.8dBi SMA Male Panel Mount
Datasheet
MA600.W.A.ABC.001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr Taoglas Limited
Series Spartan
Package Bulk
RF Family/Standard Cellular, Navigation
Frequency Group Wide Band
Frequency (Center/Band) 892MHz, 1.6GHz, 1.9GHz, 2.4GHz, 5.3GHz
Frequency Range 824MHz ~ 960MHz, 1.575GHz ~ 1.602GHz 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 4.7GHz ~ 5.9GHz
Antenna Type Dome
Number of Bands 5
VSWR 2, 1.6
Gain 32dBi, 2.1dBi, 5.1dBi, 2.1dBi, 3.8dBi
Features LNA, Filter
Termination SMA Male
Ingress Protection IP67
Mounting Type Panel Mount
Height (Max) 1.555" (39.50mm)
Applications CDMA, GPS, GSM, UMTS
Base Product Number MA600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 7A994
HTSUS 8529.10.9100
Other Names 931-1206,MA600.W.A301111.B305111.C305111,MA600WA301111B305111C305111
Standard Package 1
Win Source Part Number 1201222-MA600.W.A.ABC.001
Ultra Librarian 3D Model Ultra Librarian MA600.W.A.ABC.001 CAD Model

Description

The Taoglas Limited MA600.W.A.ABC.001 is a Spartan RF Antenna that has a SMA Male termination.

  • Termination: SMA Male
  • Frequency Range: 824MHz ~ 960MHz, 1.575GHz ~ 1.602GHz 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 4.7GHz ~ 5.9GHz
  • Gain: 32dBi, 2.1dBi, 5.1dBi, 2.1dBi, 3.8dBi
  • Mounting: Panel Mount
  • Ingress Protection: IP67
  • Height (Max): 1.555" (39.50mm)
  • Frequency Group: Wide Band
  • REACH: Unaffected
