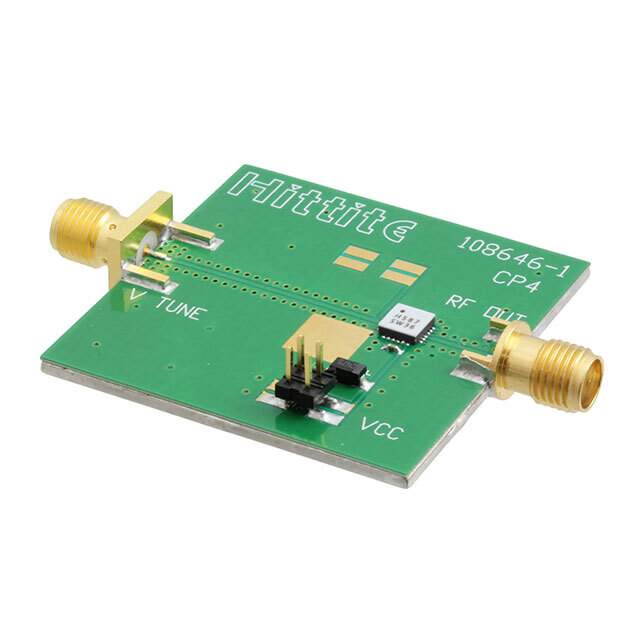

Product Overview: Analog Devices Inc. HMC587LC4B

The HMC587LC4B is a high-performance, wideband GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC Voltage Controlled Oscillator (VCO) designed by Analog Devices Inc., a leader in high-performance analog technology. This VCO integrates resonators, negative resistance devices, and varactor diodes to provide a compact, high-efficiency solution for a variety of RF and microwave applications.

Key Features

• Frequency Range: The HMC587LC4B operates over a frequency range of 10 GHz to 20 GHz, making it suitable for a broad range of applications including point-to-point and point-to-multipoint radios, VSAT, military & space, and test equipment.
• Output Power: It delivers a +5 dBm output power, ensuring a strong signal for downstream components.
• Phase Noise Performance: With excellent phase noise performance, it maintains signal integrity and allows for high-quality modulation.
• Compact Size: The device comes in a compact 4x4 mm surface-mount package, which is ideal for space-constrained applications.
• Supply Voltage: It operates on a single supply voltage of +5V, simplifying power supply design.
• Power Efficiency: The HMC587LC4B is designed for power efficiency, which helps reduce the overall power consumption of the system it is integrated into.

Applications

• Fiber Optic
• Test Instrumentation
• Microwave Radio & VSAT
• Military & Space
• Radar & ECM

With its robust design and high-quality performance, the HMC587LC4B from Analog Devices Inc. stands out as a versatile component for designers looking to enhance their RF and microwave systems. Whether for commercial telecommunications or demanding military applications, this VCO's wide frequency range, excellent phase noise characteristics, and compact form factor make it an optimal choice for advanced electronic systems.
