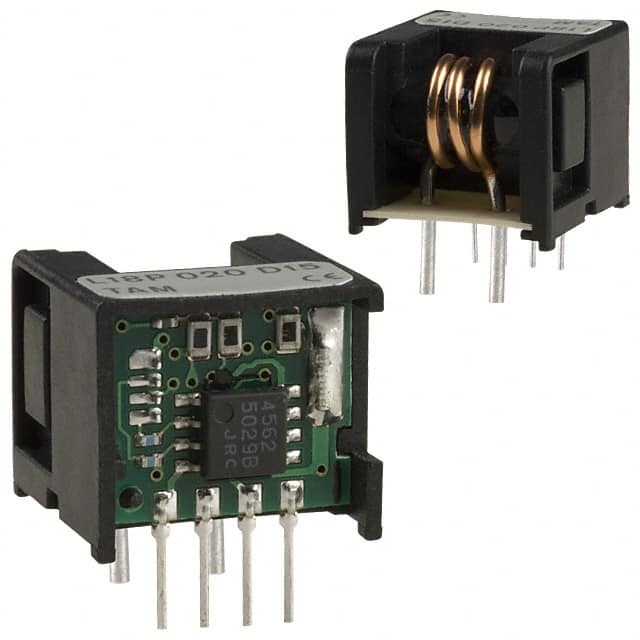

Same model may have multiple batches, images only for reference.
L18P020D15
Same model may have multiple batches, images only for reference.

L18P020D15

Part No L18P020D15
Manufacturer Tamura
Catalog Current Transducers
Description SENSOR CURRENT HALL 20A AC/DC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Current Sensors
Mfr Tamura
Package Bulk
Product Status Obsolete
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 20A
Number of Channels 1
Output Ratiometric, Voltage
Frequency DC ~ 100kHz
Linearity ±1%
Voltage - Supply ±15V
Response Time 5µs
Current - Supply (Max) 15mA
Temperature Range - Operating -30°C ~ 80°C
Polarization Bidirectional
Mounting Type Through Hole
Package / Case Module
Standard Package 600 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 9030.33.3800
Win Source Part Number 847899-L18P020D15
Ultra Librarian 3D Model Ultra Librarian L18P020D15 CAD Model

Description

The Tamura 847899-L18P020D15 is a current sensor designed for measuring AC/DC currents up to 20A.

  • Sensor Type: Open-loop Hall effect.
  • Sensitivity: ±1%.
  • Response Time: 5μs.
  • Supply Voltage: ±15V.
  • Maximum Current Consumption: 15mA.
  • Mounting: Through-hole.
  • Operating Temperature Range: -30°C to 80°C.
  • Category: Sensors, Transducers - Current Sensors.
  • Status: Obsolete.
